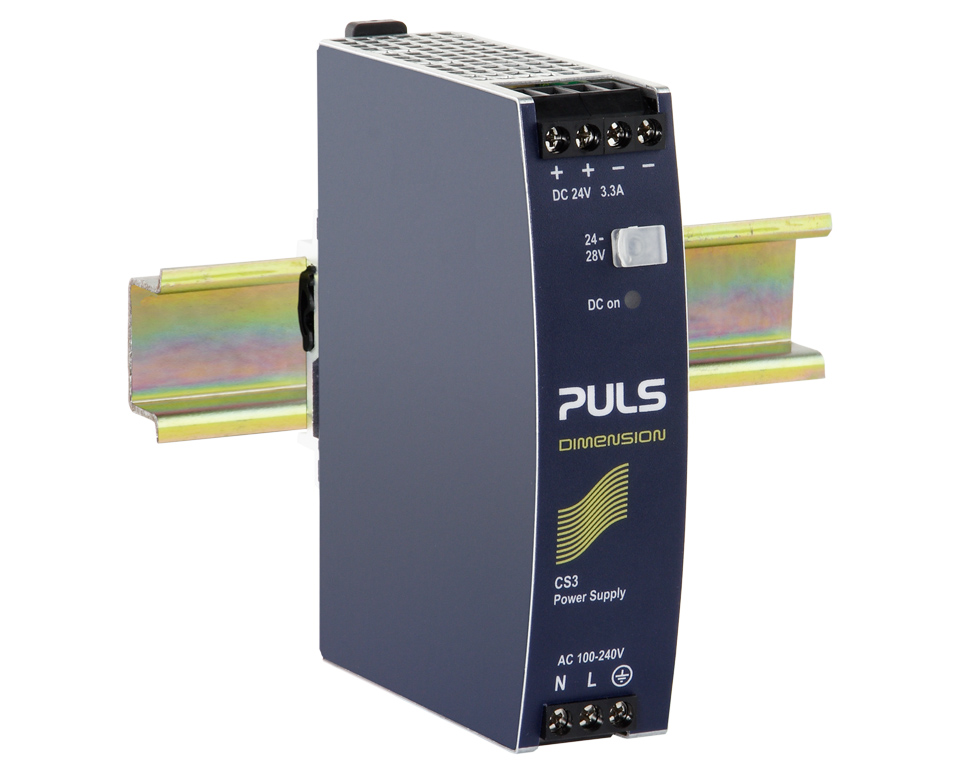

CS3.241
DIN rail power supplies for 1-phase system
24 V, 3.3 A
Datasheet
24 V, 3.3 A
| DC output | 24 - 28 Vdc |
|---|---|
| 3.3 - 2.7 A | |
| 80 W | |
| Input | AC 100 - 240 V (± 10 %) |
| DC 110 V - 300 V (-20 %/+25 %) | |
| Dimensions (WxHxD) | 32 x 124 x 102 mm |
| Weight | 430 g |
Input data
| AC Input voltage | AC 100 - 240 V (± 10 %) |
|---|---|
| DC Input voltage | DC 110 V - 300 V (-20 %/+25 %) |
| Power factor | 0.56 |
| Input inrush current limitation | NTC |
| Input inrush current | 23 A / 45 A |
| External input fuse recommendation | B-10 A / C-6 A |
Output data
| Nominal voltage | 24 Vdc |
|---|---|
| Adjustment range | 24 - 28 V |
| Output current range | 3.3 - 2.7 A |
| Output current | 2.7 A at 28 V |
| 3.3 A at 24 V | |
| Output power | 80 W |
| Derating | 1.8 W/°C for >+60 °C |
| Ripple and noise voltage max. | 50 mVpp |
Overview
| Dimensions (WxHxD) | 32 mm x 124 mm x 102 mm |
|---|---|
| Weight per unit (excl. packaging) | 430 g |
| Mounting method | DIN rail |
| Operating temp. range | -25 °C to 70 °C |
| Connection method | Screw terminals |
| Efficiency, typ. | 89.8 % |
| Power losses, typ. | 9.1 W |
| MTBF SN 29500 @ 40 °C (h) | 2243000 h |
