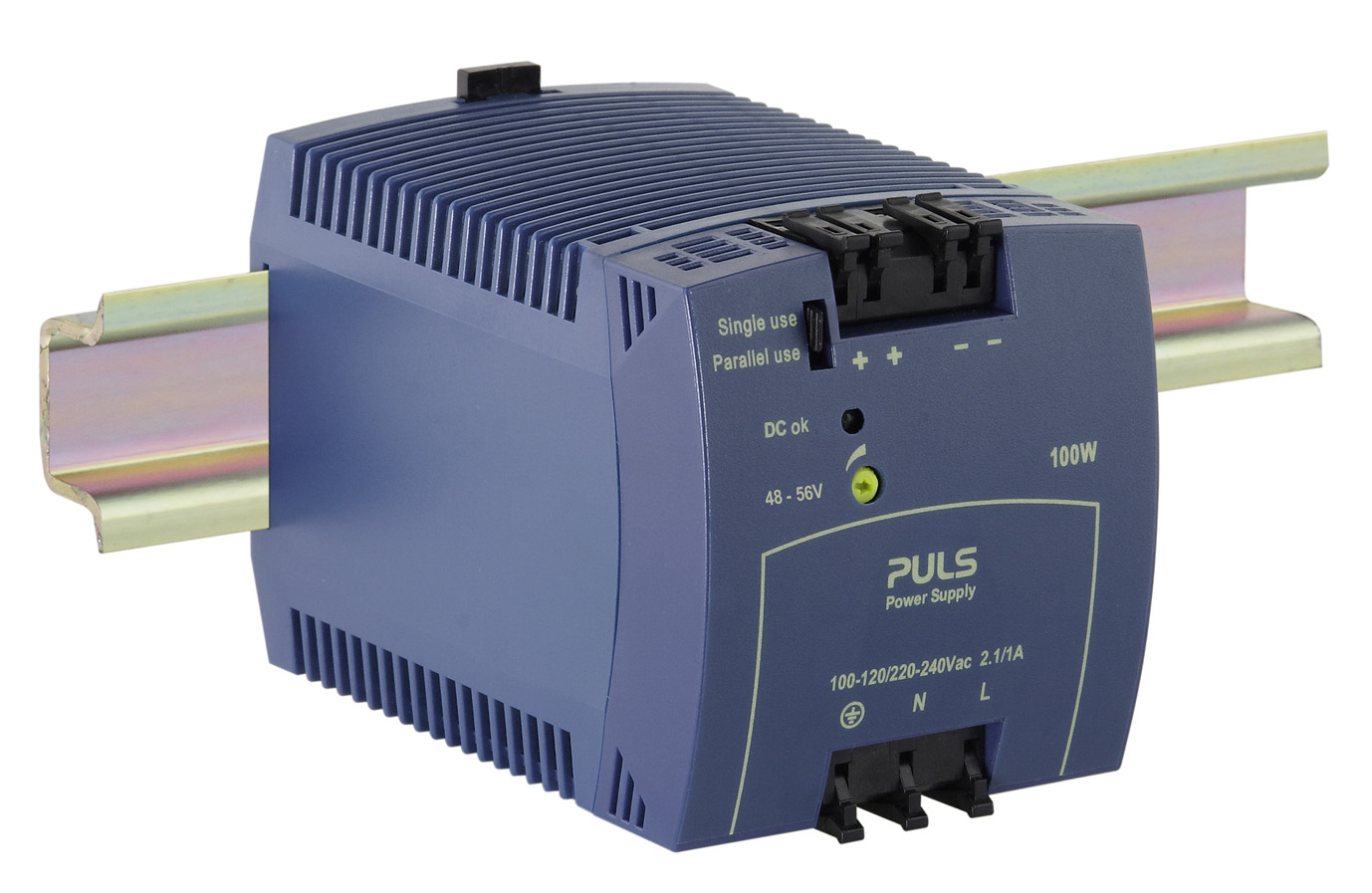

ML100.105
DIN rail power supplies for 1-phase system
48 V, 2.1 A
Datasheet
48 V, 2.1 A
| DC output | 48 - 56 Vdc |
|---|---|
| 2.1 - 1.8 A | |
| 100 W | |
| Input | AC 100 - 120 / 220 - 240 V (-15 %/+10 %) |
| DC 290 V (-25 %/+30 %) | |
| Dimensions (WxHxD) | 73 x 75 x 103 mm |
| Weight | 360 g |
Input data
| AC Input voltage | AC 100 - 120 / 220 - 240 V (-15 %/+10 %) |
|---|---|
| DC Input voltage | DC 290 V (-25 %/+30 %) |
| Power factor | 0.55 |
| Input inrush current limitation | NTC |
| Input inrush current | 22 A / 37 A |
| External input fuse recommendation | B-10 A / C-6 A |
Output data
| Nominal voltage | 48 Vdc |
|---|---|
| Adjustment range | 48 - 56 V |
| Output current range | 2.1 - 1.8 A |
| Output current | 1.8 A at 56 V |
| 2.1 A at 48 V | |
| Output power | 100 W |
| Derating | 2.5 W/°C for >+60 °C |
| Ripple and noise voltage max. | 50 mVpp |
Overview
| Dimensions (WxHxD) | 73 mm x 75 mm x 103 mm |
|---|---|
| Weight per unit (excl. packaging) | 360 g |
| Mounting method | DIN rail |
| Connection method | Spring clamps |
| Efficiency, typ. | 91 % |
| Power losses, typ. | 10 W |
| MTBF SN 29500 @ 40 °C (h) | 500000 h |
