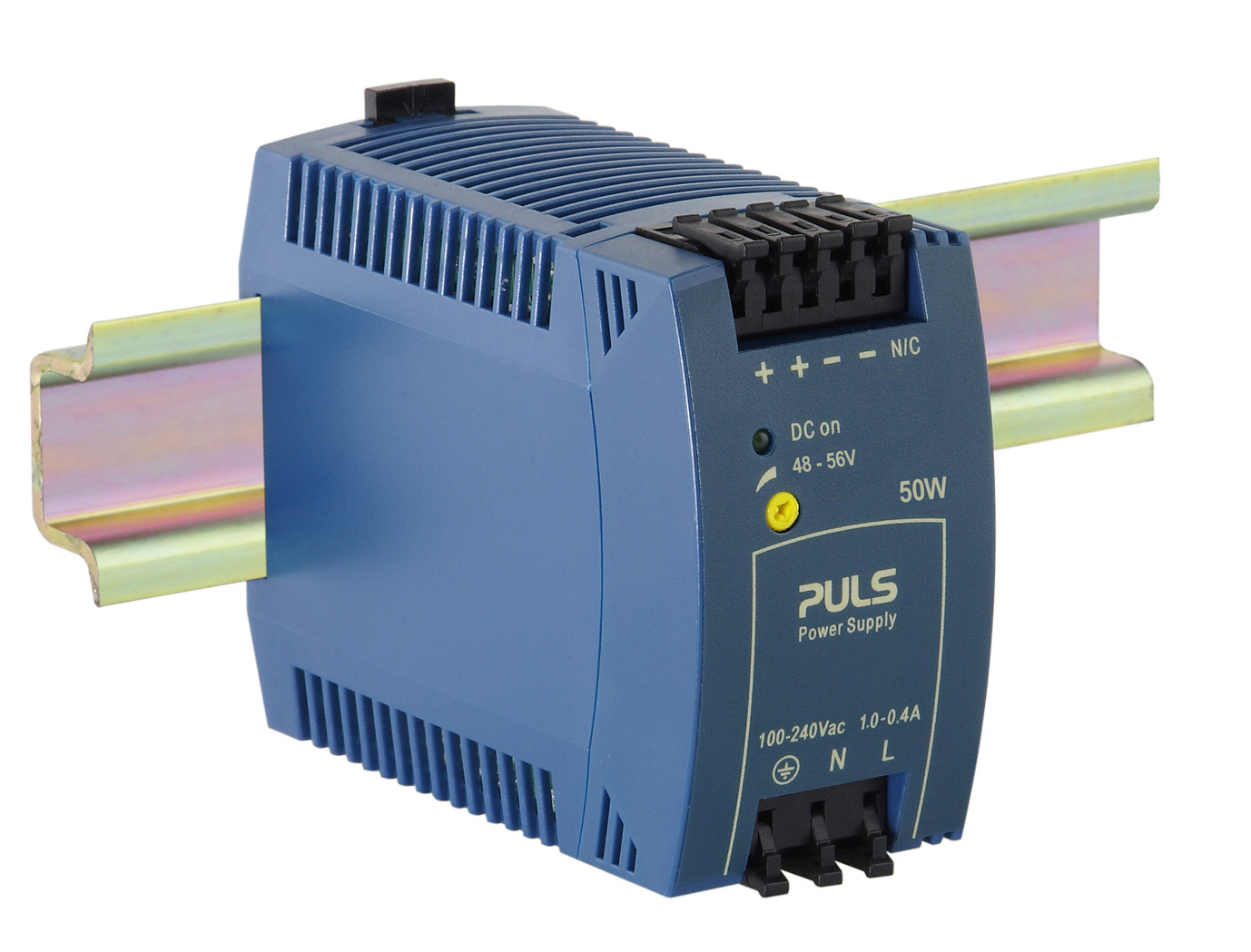

ML50.105
DIN rail power supplies for 1-phase system
48V, 1.1A
Datasheet
48V, 1.1A
| DC output | 48 - 56Vdc |
|---|---|
| 1.1A | |
| 50W | |
| Input | AC 100 - 240V (-15%/+10%) |
| DC 110V - 300V (-20%/+25%) | |
| Dimensions (WxHxD) | 45 x 75 x 91mm |
| Weight | 240g |
Input data
| AC Input voltage | AC 100 - 240V (-15%/+10%) |
|---|---|
| DC Input voltage | DC 110V - 300V (-20%/+25%) |
| Power factor | 0.52 |
| Input inrush current limitation | NTC |
| Input inrush current | 17A / 35A |
| External input fuse recommendation | B-10A / C-6A |
Output data
| Nominal voltage | 48Vdc |
|---|---|
| Adjustment range | 48 - 56V |
| Output current range | 1.1A |
| Output current | 56V |
| 1.1A at 48V | |
| Output power | 50W |
| Derating | 1.3W/°C for >+60°C |
| Ripple and noise voltage max. | 50mVpp |
Overview
| Dimensions (WxHxD) | 45mm x 75mm x 91mm |
|---|---|
| Weight per unit (excl. packaging) | 240g |
| Mounting method | DIN rail |
| Connection method | Spring clamps |
| Efficiency, typ. | 90% |
| Power losses, typ. | 6W |
| MTBF SN 29500 @ 40°C (h) | 600000h |
