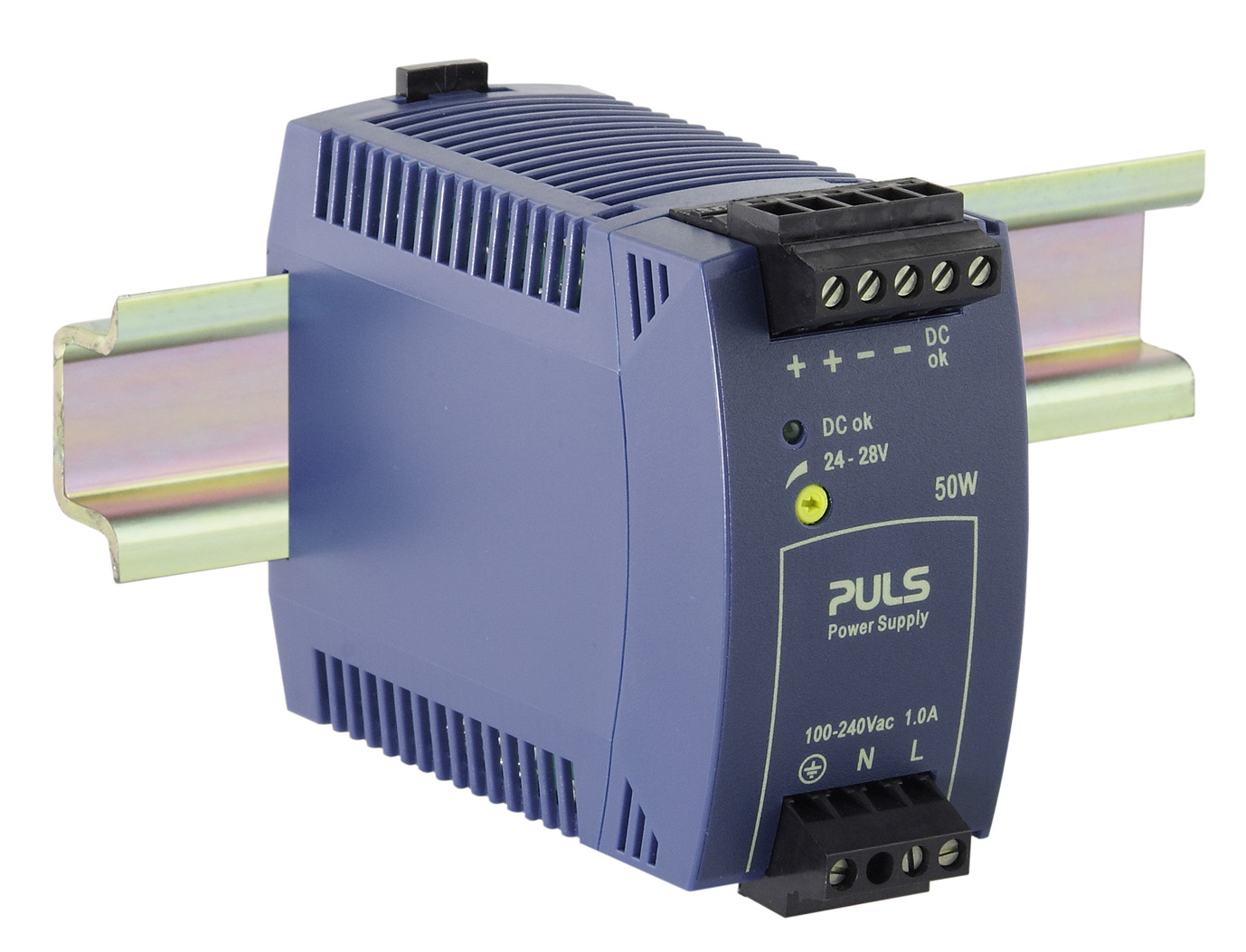

ML50.111
DIN rail power supplies for 1-phase system
24 V, 2.1 A with plug connector
Datasheet
24 V, 2.1 A with plug connector
| DC output | 24 - 28 Vdc |
|---|---|
| 2.1 - 1.8 A | |
| 50 W | |
| Input | AC 100 - 240 V |
| DC 110 V - 300 V (-20 %/+25 %) | |
| Dimensions (WxHxD) | 45 x 75 x 98 mm |
| Weight | 240 g |
Input data
| AC Input voltage | AC 100 - 240 V |
|---|---|
| DC Input voltage | DC 110 V - 300 V (-20 %/+25 %) |
| Power factor | 0.56/ 0.52 |
| Input inrush current limitation | NTC |
| Input inrush current | 17 A / 35 A |
| External input fuse recommendation | B-10 A / C-6 A |
Output data
| Nominal voltage | 24 Vdc |
|---|---|
| Adjustment range | 24 - 28 V |
| Output current range | 2.1 - 1.8 A |
| Output current | 1.8 A at 28 V |
| 2.1 A at 24 V | |
| Output power | 50 W |
| Derating | 1.3 W/°C for >+60 °C |
| Ripple and noise voltage max. | 50 mVpp |
Overview
| Dimensions (WxHxD) | 45 mm x 75 mm x 98 mm |
|---|---|
| Weight per unit (excl. packaging) | 240 g |
| Mounting method | DIN rail |
| Connection method | Plug connector |
| Efficiency, typ. | 88.4 % |
| Efficiency, typ. | 89 % |
| MTBF SN 29500 @ 40 °C (h) | 2613000 h |
| DC-OK signal | yes |
