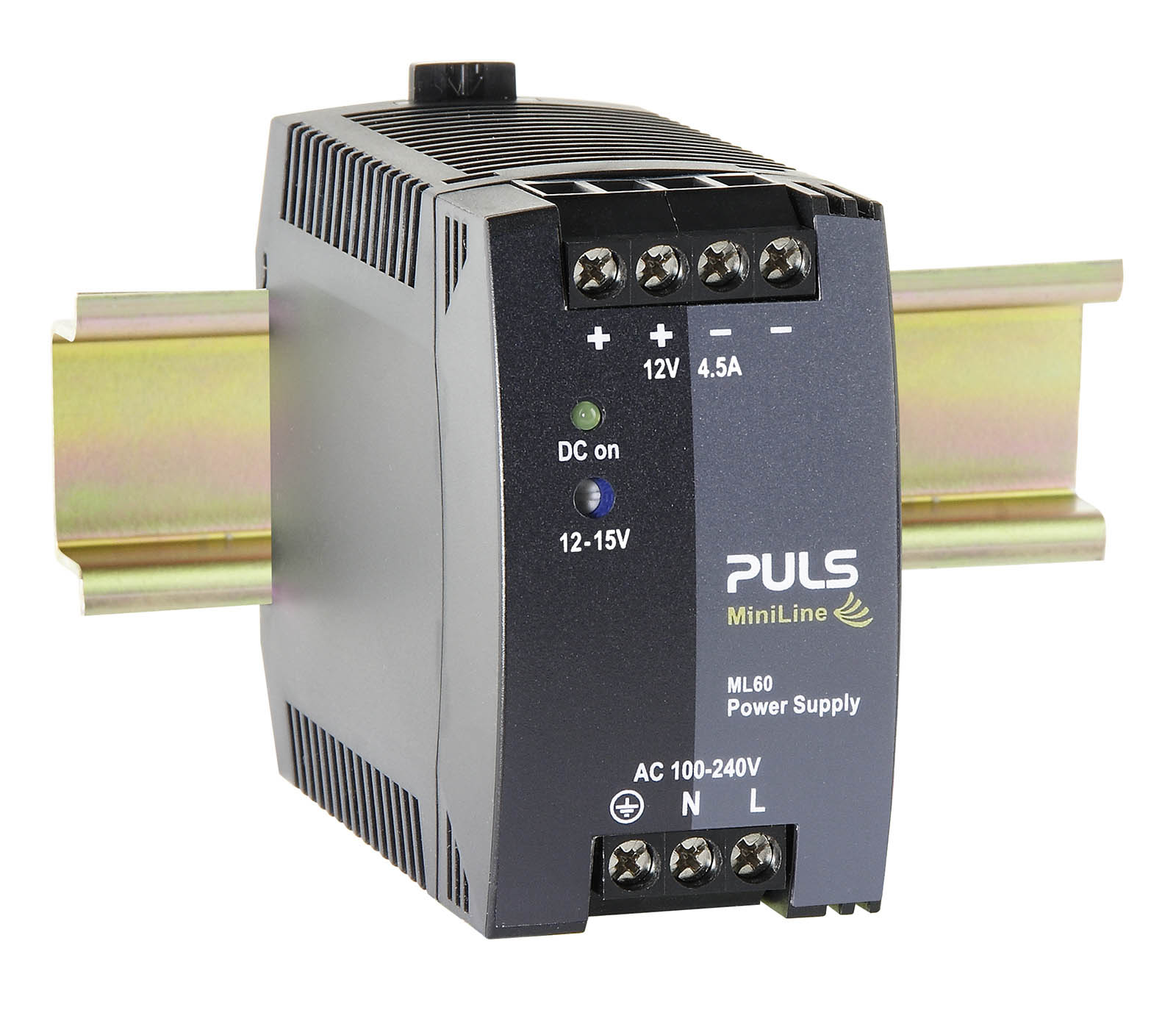

DIN rail power supplies for 1-phase system
12V, 4.5A
-40°C operation
DC output 12 - 15Vdc
4.5 - 3.6A
Input AC 100 - 240V (-15%/+10%)
DC 110V - 300V (-20%/+25%)
Dimensions (WxHxD) 45 x 75 x 91mm
Weight 250g

Input data

AC Input voltage AC 100 - 240V (-15%/+10%)
DC Input voltage DC 110V - 300V (-20%/+25%)
Power factor 0.44
Input inrush current limitation active
Input inrush current 6A
External input fuse recommendation B-6A / C-3A

Output data

Nominal voltage 12Vdc
Adjustment range 12 - 15V
Output current range 4.5 - 3.6A
Output current 3.6A at 15V
4.5A at 12V
Output power 54W
Derating 1.4W/°C for >+60°C
Ripple and noise voltage max. 50mVpp


Dimensions (WxHxD) 45mm x 75mm x 91mm
Weight per unit (excl. packaging) 250g
Mounting method DIN rail
Operating temp. range -40°C to 70°C
Connection method Screw terminals
Efficiency, typ. 87.6%
Power losses, typ. 7.6W
MTBF SN 29500 @ 40°C (h) 1571000h
