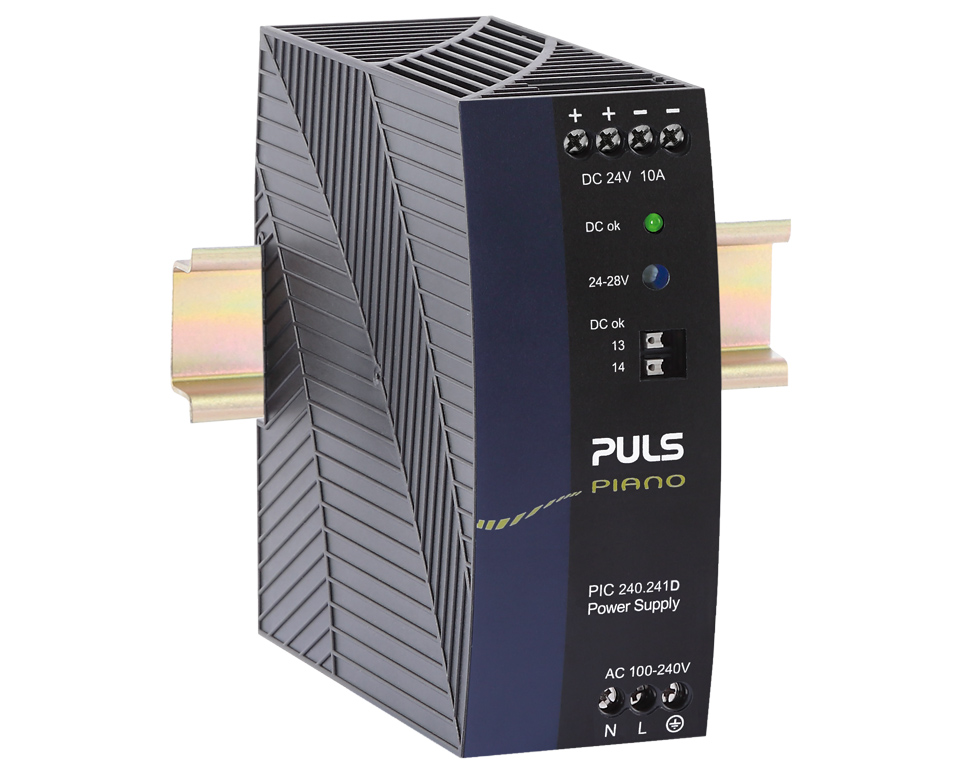

PIC240.241D
DIN rail power supplies for 1-phase system
24V, 10A DC-OK relay contact
Datasheet
24V, 10A DC-OK relay contact
| DC output | 24 - 28Vdc |
|---|---|
| 10 - 8.6A | |
| 240W | |
| Input | AC 100 - 240V (± 10%) |
| Dimensions (WxHxD) | 49 x 124 x 124mm |
| Weight | 540g |
Input data
| AC Input voltage | AC 100 - 240V (± 10%) |
|---|---|
| Harmonic correction | active |
| Power factor | 0.93 |
| Input inrush current limitation | active |
| Input inrush current | 14A / 26A |
| External input fuse recommendation | B-10A / C-6A |
Output data
| Nominal voltage | 24Vdc |
|---|---|
| Adjustment range | 24 - 28V |
| Output current range | 10 - 8.6A |
| Output current | 8.6A at 28V |
| 10A at 24V | |
| Output power | 240W |
| Derating | 6W/°C for >+55°C |
| Ripple and noise voltage max. | 100mVpp |
Overview
| Dimensions (WxHxD) | 49mm x 124mm x 124mm |
|---|---|
| Weight per unit (excl. packaging) | 540g |
| Mounting method | DIN rail |
| Operating temp. range | -25°C to 70°C |
| Connection method | Screw terminals |
| Efficiency, typ. | 95.2% |
| Power losses, typ. | 12.1W |
| DC-OK signal | yes |
