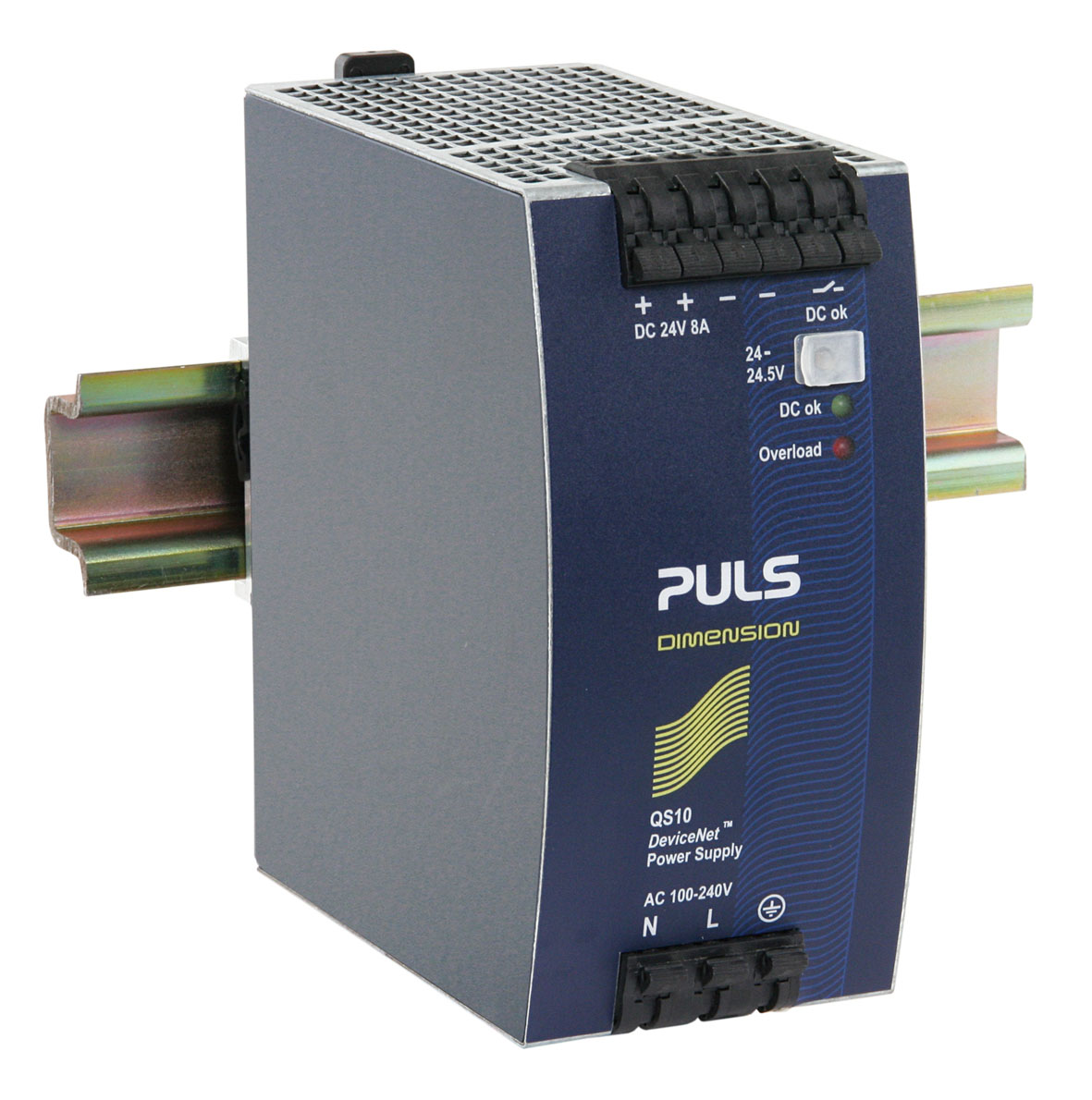

QS10.DNET
DeviceNet power supply
24 V, 8 A DeviceNet approved
Datasheet
24 V, 8 A DeviceNet approved
| DC output | 24 - 24.5 Vdc |
|---|---|
| 8 - 8 A | |
| 192 W | |
| Input | AC 100 - 240 V (± 15 %) |
| DC 110 V - 150 V (-20 %/+25 %) | |
| Dimensions (WxHxD) | 60 x 124 x 117 mm |
| Weight | 900 g |
Input data
| AC Input voltage | AC 100 - 240 V (± 15 %) |
|---|---|
| DC Input voltage | DC 110 V - 150 V (-20 %/+25 %) |
| Harmonic correction | active |
| Power factor | 0.92 |
| Input inrush current limitation | active |
| Input inrush current | 4 A / 7 A |
| External input fuse recommendation | B-6 A / C-4 A |
Output data
| Nominal voltage | 24 Vdc |
|---|---|
| Adjustment range | 24 - 24.5 V |
| Output current range | 8 - 8 A |
| Output current | 8 A at 24.5 V |
| 8 A at 24 V | |
| Output power | 192 W |
| Derating | 5 W/°C for >+60 °C |
| Ripple and noise voltage max. | 50 mVpp |
Overview
| Dimensions (WxHxD) | 60 mm x 124 mm x 117 mm |
|---|---|
| Weight per unit (excl. packaging) | 900 g |
| Mounting method | DIN rail |
| Operating temp. range | -25 °C to 70 °C |
| Connection method | Spring clamps |
| Efficiency, typ. | 93.4 % |
| Power losses, typ. | 13.6 W |
| MTBF SN 29500 @ 40 °C (h) | 581000 h |
| DC-OK signal | yes |
