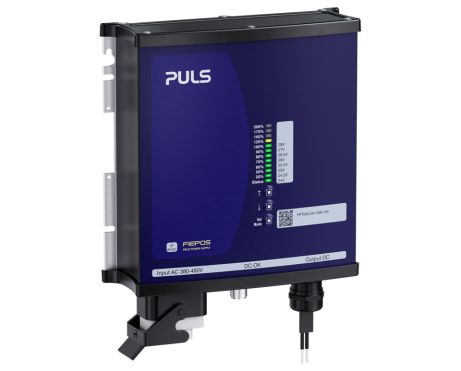

FPT500.241-006-104
Neu
3-Phasen IP54, IP65 und IP67 Stromversorgung
24 V, 25 A Eingang: HanQ4/2 | Ausgang: ASi Cable
Datenblatt
24 V, 25 A Eingang: HanQ4/2 | Ausgang: ASi Cable
| DC Ausgang | 24 - 28 Vdc |
|---|---|
| 25 - 21.4 A | |
| 600 W | |
| Eingang | AC 380 - 480 V (± 15 %) |
| Abmessungen (BxHxT) | 181 x 183 x 59 mm |
| Gewicht | 1200 g |
Eingangsdaten
| AC-Eingangsspannung | AC 380 - 480 V (± 15 %) |
|---|---|
| Leistungsfaktor | 0.95 |
| Einschaltstrombegrenzung | aktiv |
| Einschaltstrom (Spitze) | 1.9 A / 1.8 A |
| Externe Eingangsabsicherung min. | B-6 A / C-6 A |
Ausgangsdaten
| Nennspannung | 24 Vdc |
|---|---|
| Einstellbereich | 24 - 28 V |
| Ausgangsstrombereich | 25 - 21.4 A |
| Ausgangsstrom | 21.4 A bei 28 V |
| 25 A bei 24 V | |
| Ausgangsleistung | 600 W |
| Leistungsreserve | 1000 W (bis zu 5s) |
| Derating | 10 W/°C für +45 to +70 °C |
| 33 W/1000 m für altitudes >2000 m | |
| max. Restwelligkeit | 100 mVpp |
Überblick
| Abmessungen (BxHxT) | 181 mm x 183 mm x 59 mm |
|---|---|
| Weight per unit (excl. packaging) | 1200 g |
| Montageart | DIN-Schiene |
| Arbeitstemperaturbereich | -25°C bis 70°C |
| Anschlussklemmen | Input: HanQ4/2 | Output: ASi Cable |
| Wirkungsgrad, typ. | 95.6 % |
| Verlustleistung, typ. | 23 W |
| MTBF SN 29500 @ 40 °C (h) | 290000 h |
| DC-OK signal | ja |
