Power supplies with integrated display

All data at a glance directly in your application. Our highly efficient 240 W and 480 W DIN rail power supplies with integrated power supply condition display (PSCD) enable faster application analysis.

Application analysis.
Power supply as a data source.

Power supplies with monitoring display support decisions based on real system data. This data is useful in different phases of a system's lifecycle.

In the development phase, it can be a challenge to decide for the right power supply solution in terms of performance, features and cost. A detailed data analysis of the energy consumption and peak values in the application helps to make the right decision at an early stage.

For a permanent stream of application data during operation, the power supplies are integrated into the factory. This way, among other things, the mains quality and anomalies can be recorded and countermeasures can be taken before a downtime occurs.

The power supply also provides information on the current load profile under real conditions for situational analyses in the event of faults or for pre-tests of system expansions. This can greatly reduce the time required for fault diagnosis and increase system availability.

Portfolio.
Available power supplies with integrated display.

DIN rail power supplies for 1-phase system

Compare	Article No.		DC output		Range	Power	Input	Dimensions WxHxD (mm)			Special feature
New	CP10.248		24 V	10 A	24-28 Vdc	240 W	AC 100-240 V \| DC 110-150 V	48	124	127	integrated power supply condition display (PSCD)

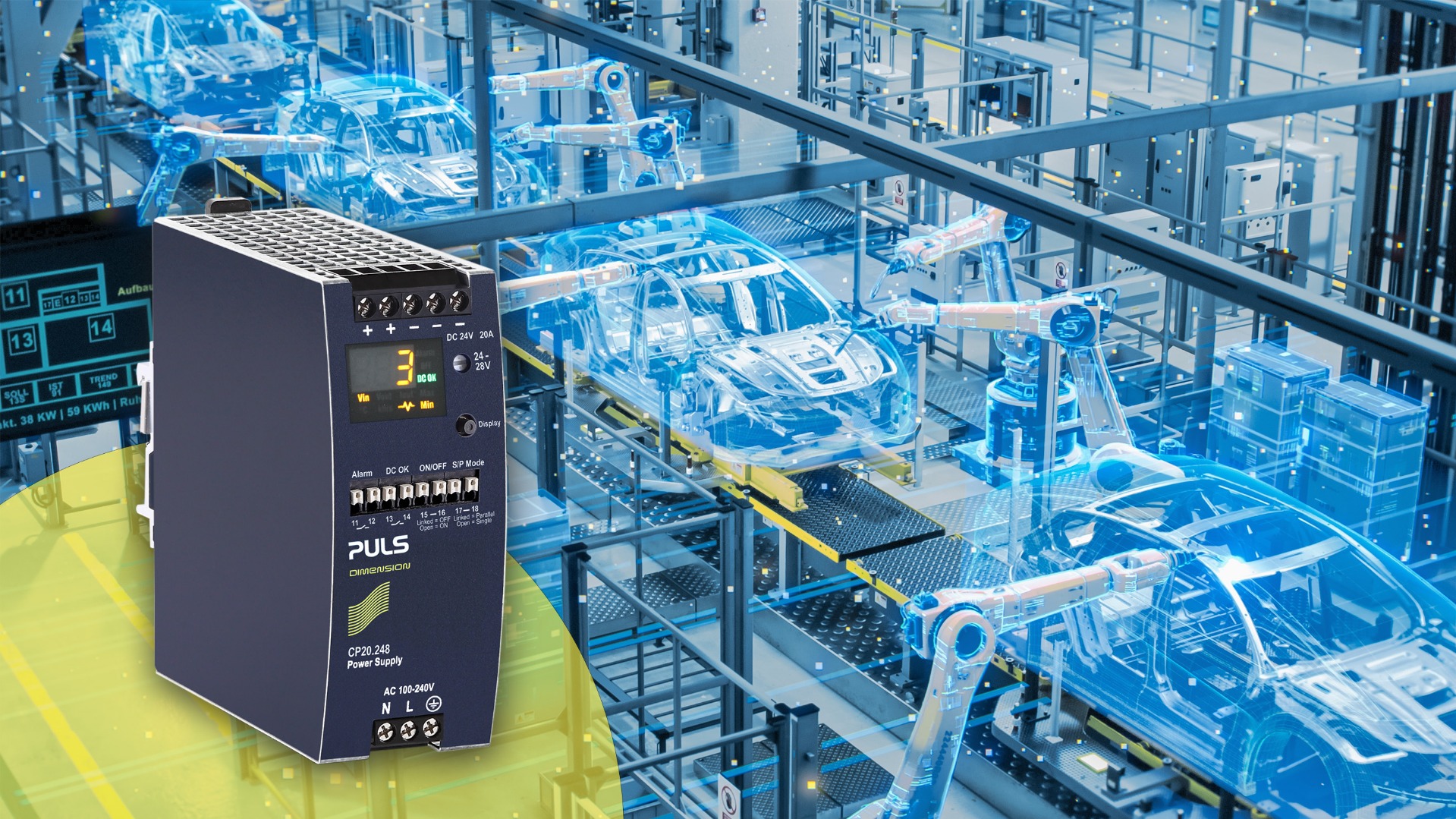

	CP20.248		24 V	20 A	24-28 Vdc	480 W	AC 100-240 V \| DC 110-150 V	48	124	127	integrated power supply condition display (PSCD)

Application data.
Know what is going on.

Real-time data

Input voltage of the mains line
Output voltage of the power supply unit
Output current of the power supply unit
Internal temperature (primary switches)
Total operating hours

Recorded data

Minimum & maximum RMS input voltage
Number of transient voltage dips on input
Number of transient voltage peaks on input
Maximum output voltage
Maximum output current
Minimum & maximal internal temperature (primary switches)

Just the beginning.
Think of power supply as a system.

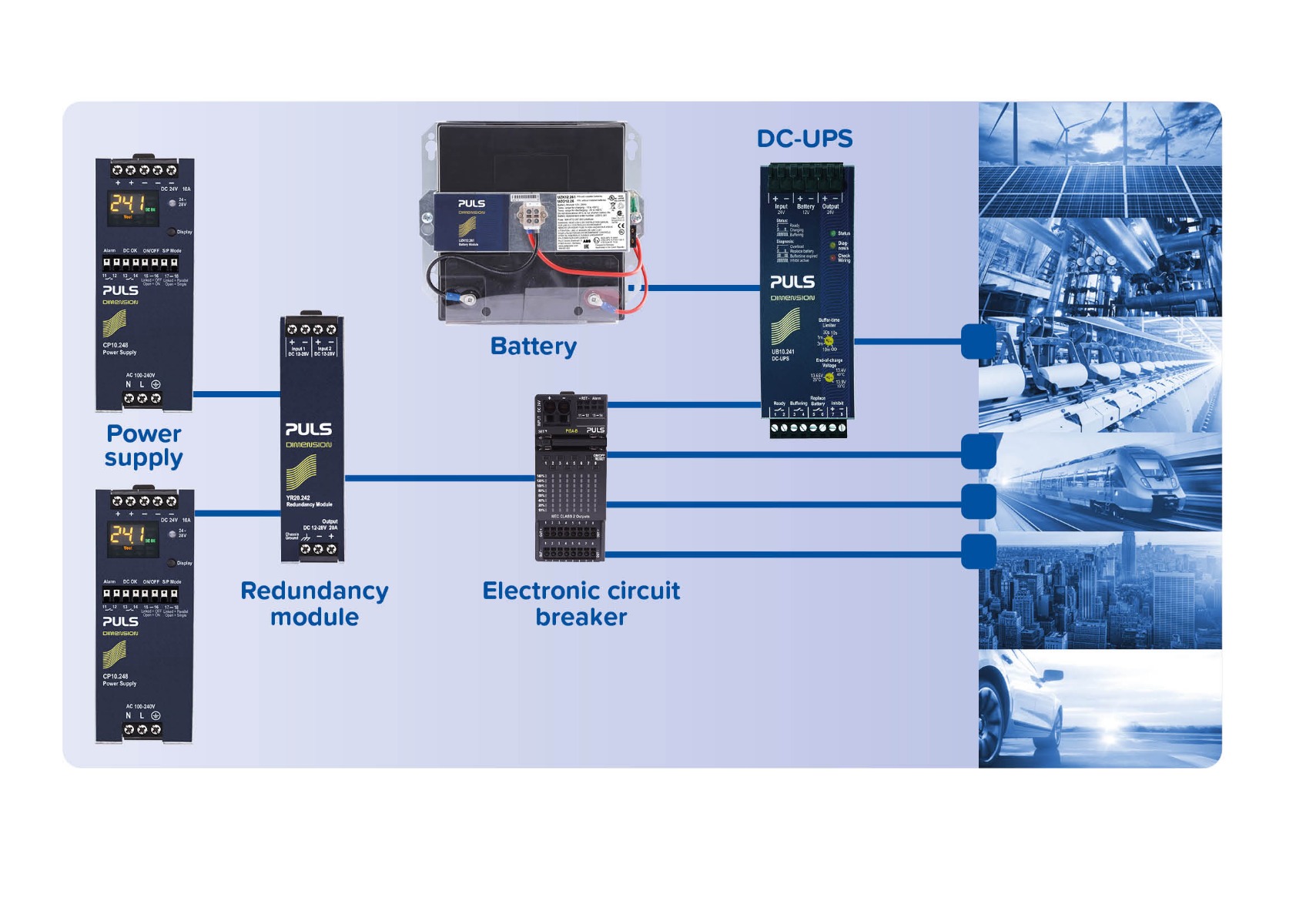

A power supply system includes more than just the power supply unit itself. DC UPS , electronic circuit breakers and redundancy or buffer modules contribute to a holistic solution.

PULS provides all necessary products to plan an efficient and reliable power supply system for your cabinet.
