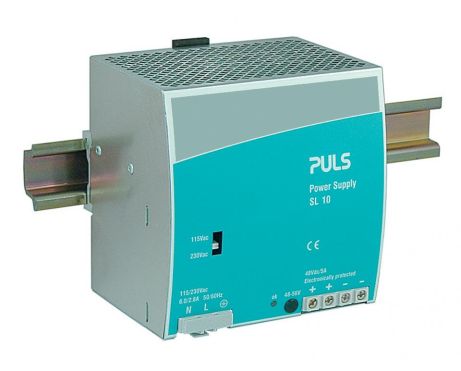

DIN rail power supplies for 1-phase system
48 V, 5 A
with passive PFC-inductor
DC output 48 - 56 Vdc
5 - 4.3 A
240 W
Input AC 100 - 120 / 210 - 240 V
Dimensions (WxHxD) 120 x 124 x 102 mm
Weight 1195 g

Input data

AC Input voltage AC 100 - 120 / 210 - 240 V

Output data

Nominal voltage 48 Vdc
Adjustment range 48 - 56 V
Output current range 5 - 4.3 A
Output current 4.3 A at 56 V
5 A at 48 V
Output power 240 W
Ripple and noise voltage max. 50 mVpp


Dimensions (WxHxD) 120 mm x 124 mm x 102 mm
Weight per unit (excl. packaging) 1195 g
Mounting method DIN rail
Connection method Screw terminals
