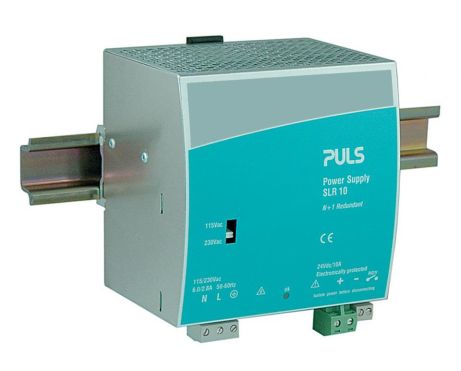

Power supply with integrated decoupling function
24 V, 10 A
decoupling diode for redundancy use included
DC output 24 Vdc
10 A
240 W
Input AC 100 - 120 / 210 - 240 V
Dimensions (WxHxD) 120 x 124 x 102 mm
Weight 980 g

Input data

AC Input voltage AC 100 - 120 / 210 - 240 V

Output data

Nominal voltage 24 Vdc
Adjustment range 24 V
Output current range 10 A
Output current 10 A at 24 V
Output power 240 W
Derating 12 W/°C for >+60 °C
Ripple and noise voltage max. 30 mVpp


Dimensions (WxHxD) 120 mm x 124 mm x 102 mm
Weight per unit (excl. packaging) 980 g
Mounting method DIN rail
Operating temp. range 0 °C to 70 °C
Connection method Plug connector
Efficiency, typ. 89 %
Power losses, typ. 26.7 W
MTBF SN 29500 @ 40 °C (h) 390000 h
