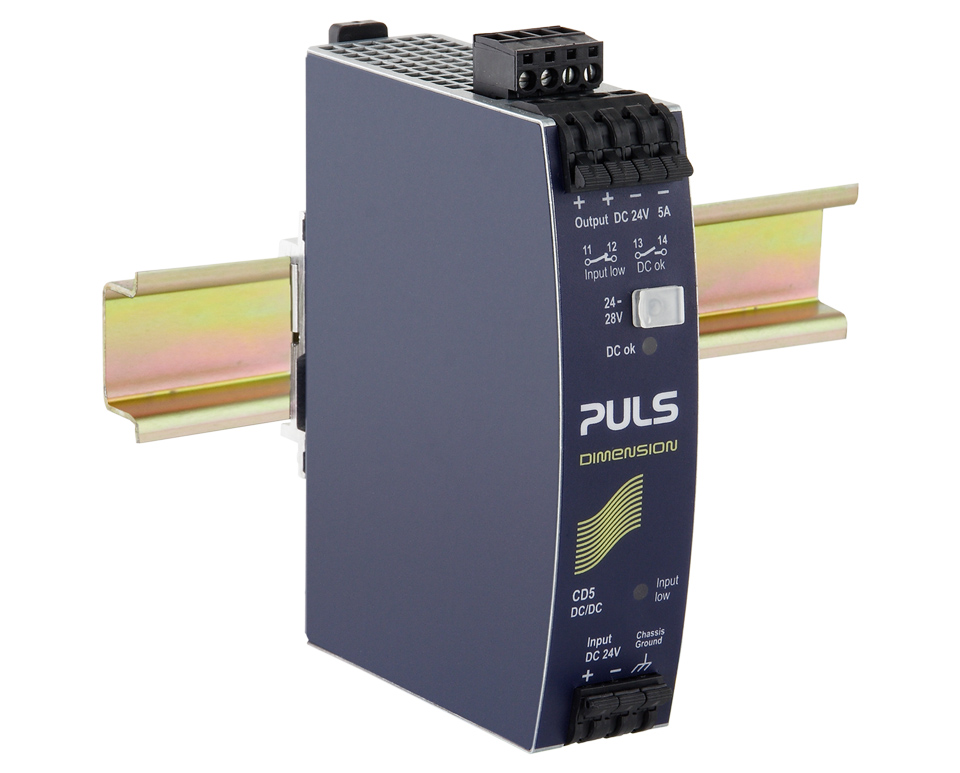

DC/DC converter
24V, 5A
with signal contacts
DC output 24 - 28Vdc
5 - 4.3A
Input DC 24V (-25%/+35%)
Dimensions (WxHxD) 32 x 124 x 102mm
Weight 450g

Input data

DC Input voltage DC 24V (-25%/+35%)

Output data

Nominal voltage 24Vdc
Adjustment range 24 - 28V
Output current range 5 - 4.3A
Output current 4.3A at 28V
5A at 24V
Output power 120W
Power reserves 20% Power Boost
Derating 3W/°C for >+60°C
Ripple and noise voltage max. 50mVpp


Dimensions (WxHxD) 32mm x 124mm x 102mm
Weight per unit (excl. packaging) 450g
Mounting method DIN rail
Operating temp. range -25°C to 70°C
Connection method Spring clamps
Efficiency, typ. 90.2%
Power losses, typ. 13,3W
MTBF SN 29500 @ 40°C (h) 1048000h
DC-OK signal yes
