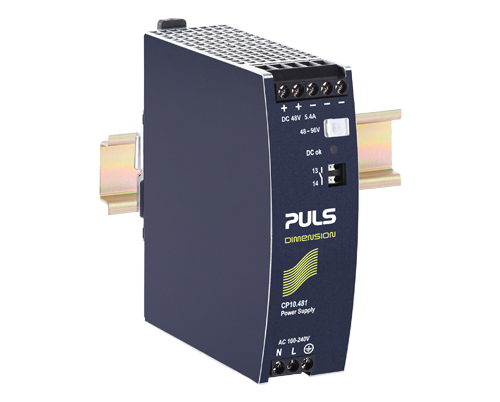

CP10.481
DIN rail power supplies for 1-phase system
48 V, 5.4 A
Datasheet
48 V, 5.4 A
| DC output | 48 - 56 Vdc |
|---|---|
| 5.4 - 4.6 A | |
| 260 W | |
| Input | AC 100 - 240 V (± 10 %) |
| DC 110 V - 150 V (± 20 %) | |
| Dimensions (WxHxD) | 39 x 124 x 117 mm |
| Weight | 600 g |
Input data
| AC Input voltage | AC 100 - 240 V (± 10 %) |
|---|---|
| DC Input voltage | DC 110 V - 150 V (± 20 %) |
| Harmonic correction | active |
| Power factor | 0.98 |
| Input inrush current limitation | active |
| Input inrush current | 6 A / 9 A |
| External input fuse recommendation | B-6 A / C-6 A |
Output data
| Nominal voltage | 48 Vdc |
|---|---|
| Adjustment range | 48 - 56 V |
| Output current range | 5.4 - 4.6 A |
| Output current | 4.6 A at 56 V |
| 5.4 A at 48 V | |
| Output power | 260 W |
| Power reserves | 20 % Power Boost |
| Derating | 6.5 W/°C for >+60 °C |
| Ripple and noise voltage max. | 50 mVpp |
Overview
| Dimensions (WxHxD) | 39 mm x 124 mm x 117 mm |
|---|---|
| Weight per unit (excl. packaging) | 600 g |
| Mounting method | DIN rail |
| Operating temp. range | -25 °C to 70 °C |
| Connection method | Screw terminals |
| Efficiency, typ. | 95.5 % |
| Power losses, typ. | 12.3 W |
| DC-OK signal | yes |
