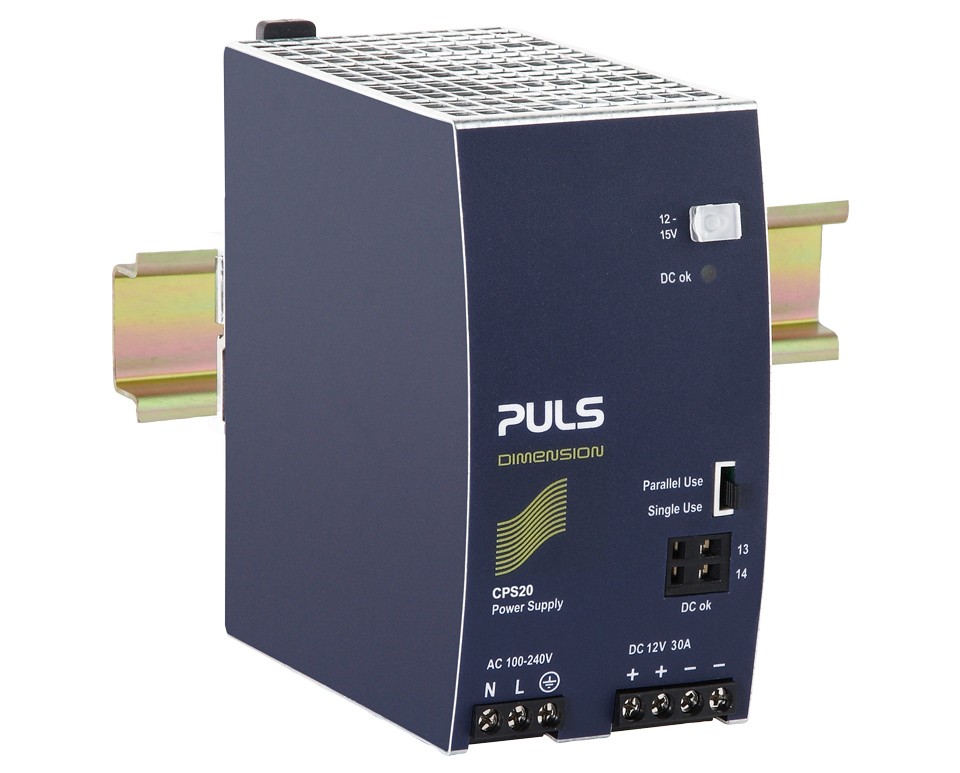

CPS20.121
DIN rail power supplies for 1-phase system
12 V, 30 A
Datasheet
12 V, 30 A
| DC output | 12 - 15 Vdc |
|---|---|
| 30 - 27 A | |
| 405 W | |
| Input | AC 100 - 240 V (-15 %/+10 %) |
| Dimensions (WxHxD) | 65 x 124 x 127 mm |
| Weight | 1000 g |
Input data
| AC Input voltage | AC 100 - 240 V (-15 %/+10 %) |
|---|---|
| Harmonic correction | active |
| Power factor | 0.95 |
| Input inrush current limitation | active |
| Input inrush current | 9 A / 7 A |
| External input fuse recommendation | B-10 A / C-10 A |
Output data
| Nominal voltage | 12 Vdc |
|---|---|
| Adjustment range | 12 - 15 V |
| Output current range | 30 - 27 A |
| Output current | 27 A at 15 V |
| 30 A at 12 V | |
| Output power | 405 W |
| Power reserves | 20 % |
| Derating | 0,75 W/°C for >+60 °C |
| Ripple and noise voltage max. | 100 mVpp |
Overview
| Dimensions (WxHxD) | 65 mm x 124 mm x 127 mm |
|---|---|
| Weight per unit (excl. packaging) | 1000 g |
| Mounting method | DIN rail |
| Operating temp. range | -25 °C to 70 °C |
| Connection method | Screw terminals |
| Efficiency, typ. | 92.6 % |
| Power losses, typ. | 28,8 W |
| MTBF SN 29500 @ 40 °C (h) | 554000 h |
| DC-OK signal | yes |
