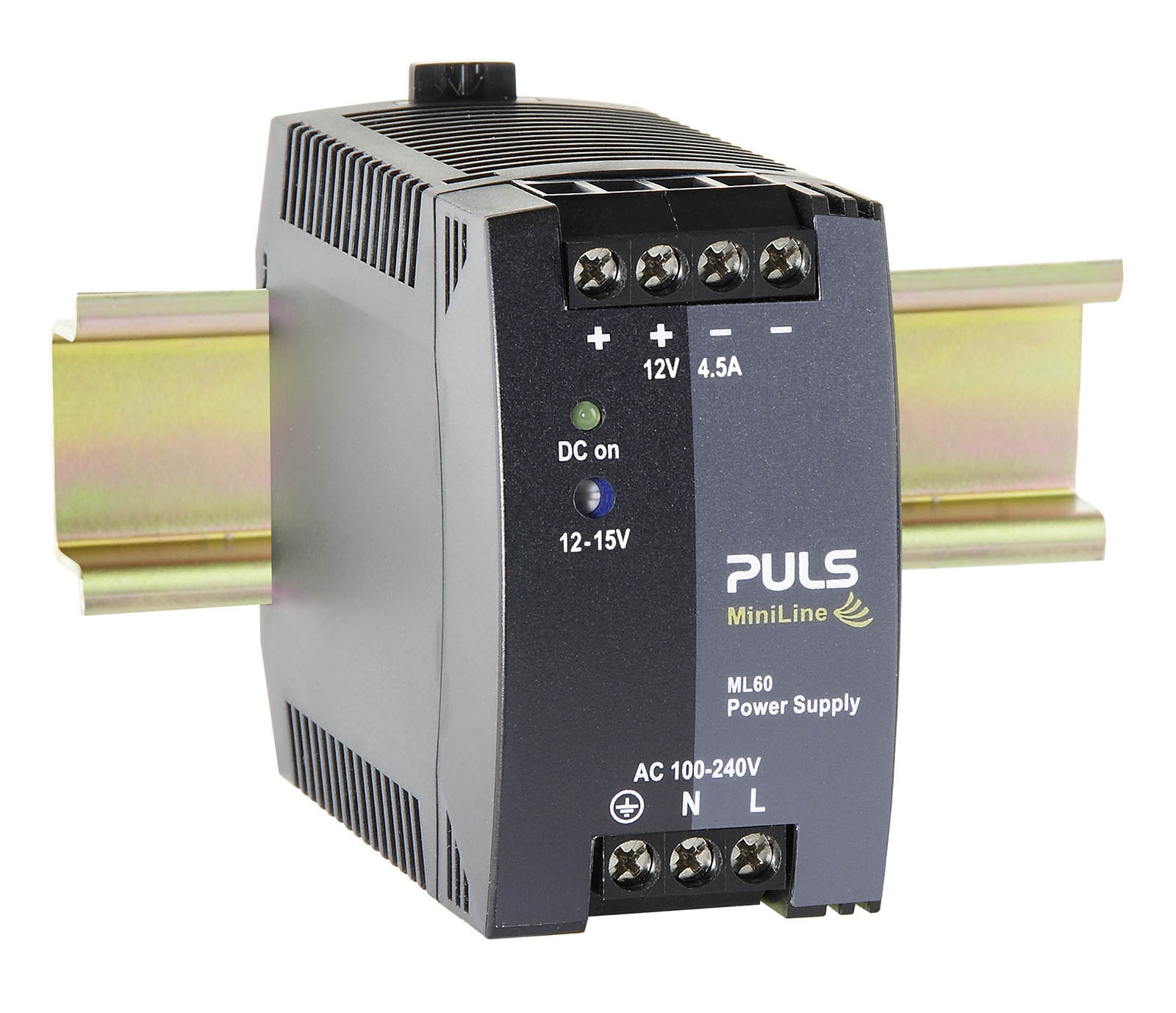

ML60.122
12 V, 4.5 A -40°C operation
DC output | 12 - 15 Vdc |
---|---|
4.5 - 3.6 A | |
54 W | |
Input | AC 100 - 240 V (-15 %/+10 %) |
DC 110 V - 300 V (-20 %/+25 %) | |
Dimensions (WxHxD) | 45 x 75 x 91 mm |
Weight | 250 g |
Input data
AC Input voltage | AC 100 - 240 V (-15 %/+10 %) |
---|---|
DC Input voltage | DC 110 V - 300 V (-20 %/+25 %) |
Power factor | 0.44 |
Input inrush current limitation | active |
Input inrush current | 6 A |
External input fuse recommendation | B-6 A / C-3 A |
Output data
Nominal voltage | 12 Vdc |
---|---|
Adjustment range | 12 - 15 V |
Output current range | 4.5 - 3.6 A |
Output current | 3.6 A at 15 V |
4.5 A at 12 V | |
Output power | 54 W |
Derating | 1.4 W/°C for >+60 °C |
Ripple and noise voltage max. | 50 mVpp |
Overview
Dimensions (WxHxD) | 45 mm x 75 mm x 91 mm |
---|---|
Weight per unit (excl. packaging) | 250 g |
Mounting method | DIN rail |
Operating temp. range | -40 °C to 70 °C |
Connection method | Screw terminals |
Efficiency, typ. | 87.6 % |
Power losses, typ. | 7.6 W |
MTBF SN 29500 @ 40 °C (h) | 1571000 h |
