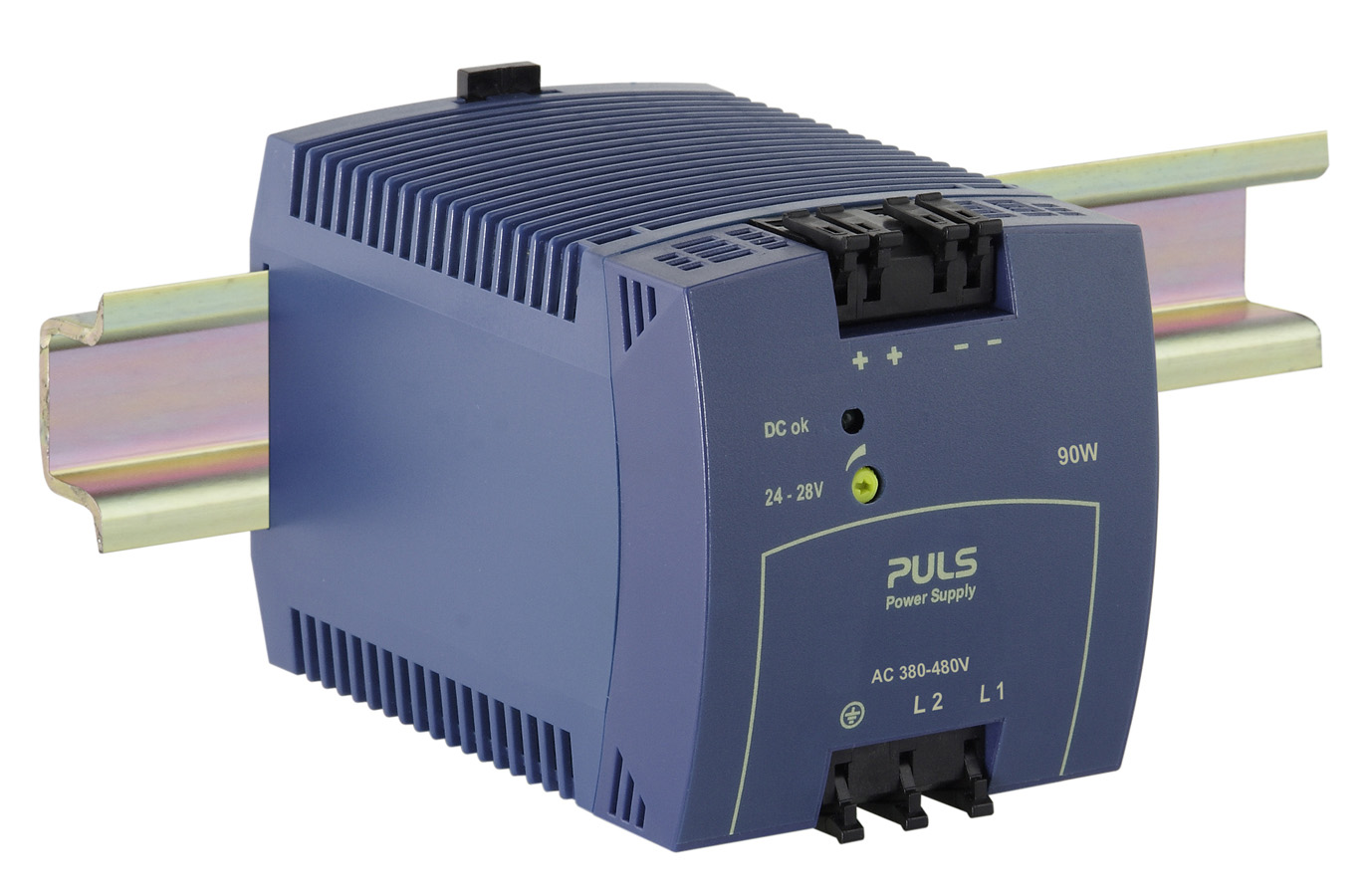

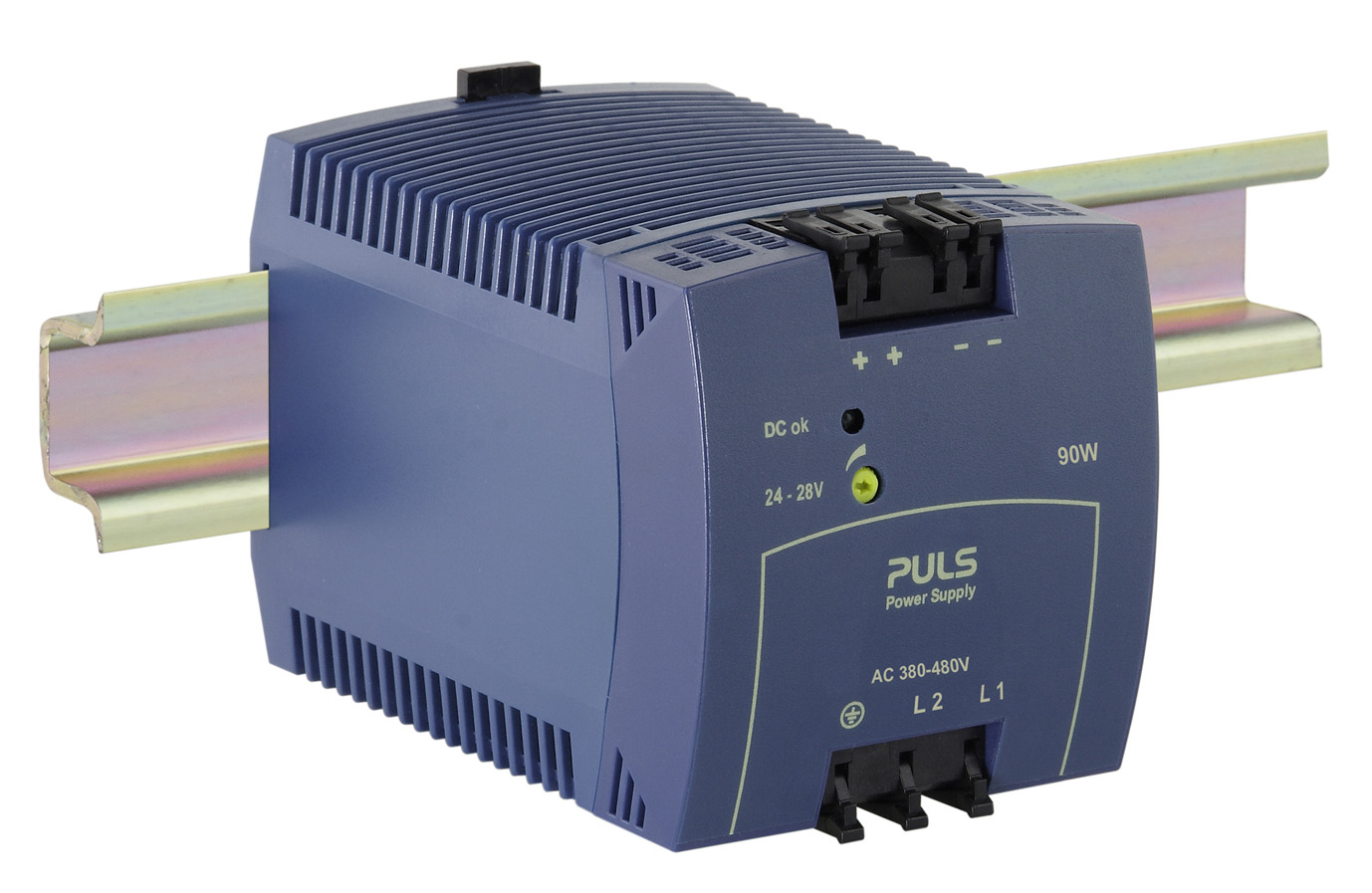

24V, 3.8A NEC Class 2
|DC output||24 - 28Vdc|
|3.8 - 3.2A|
|Input||AC 380 - 480V (± 15%)|
|Dimensions (WxHxD)||73 x 75 x 103mm|
|AC Input voltage||AC 380 - 480V (± 15%)|
|Input inrush current limitation||NTC|
|Input inrush current||30A / 36A|
|External input fuse recommendation||B-10A / C-6A|
|Adjustment range||24 - 28V|
|Output current range||3.8 - 3.2A|
|Output current||3.2A at 28V|
|3.8A at 24V|
|Derating||2W/°C for >+60°C|
|Ripple and noise voltage max.||50mVpp|
|Dimensions (WxHxD)||73mm x 75mm x 103mm|
|Weight per unit (excl. packaging)||360g|
|Mounting method||DIN rail|
|Connection method||Spring clamps|
|Power losses, typ.||10.5W|
|MTBF SN 29500 @ 40°C (h)||1594000h|
