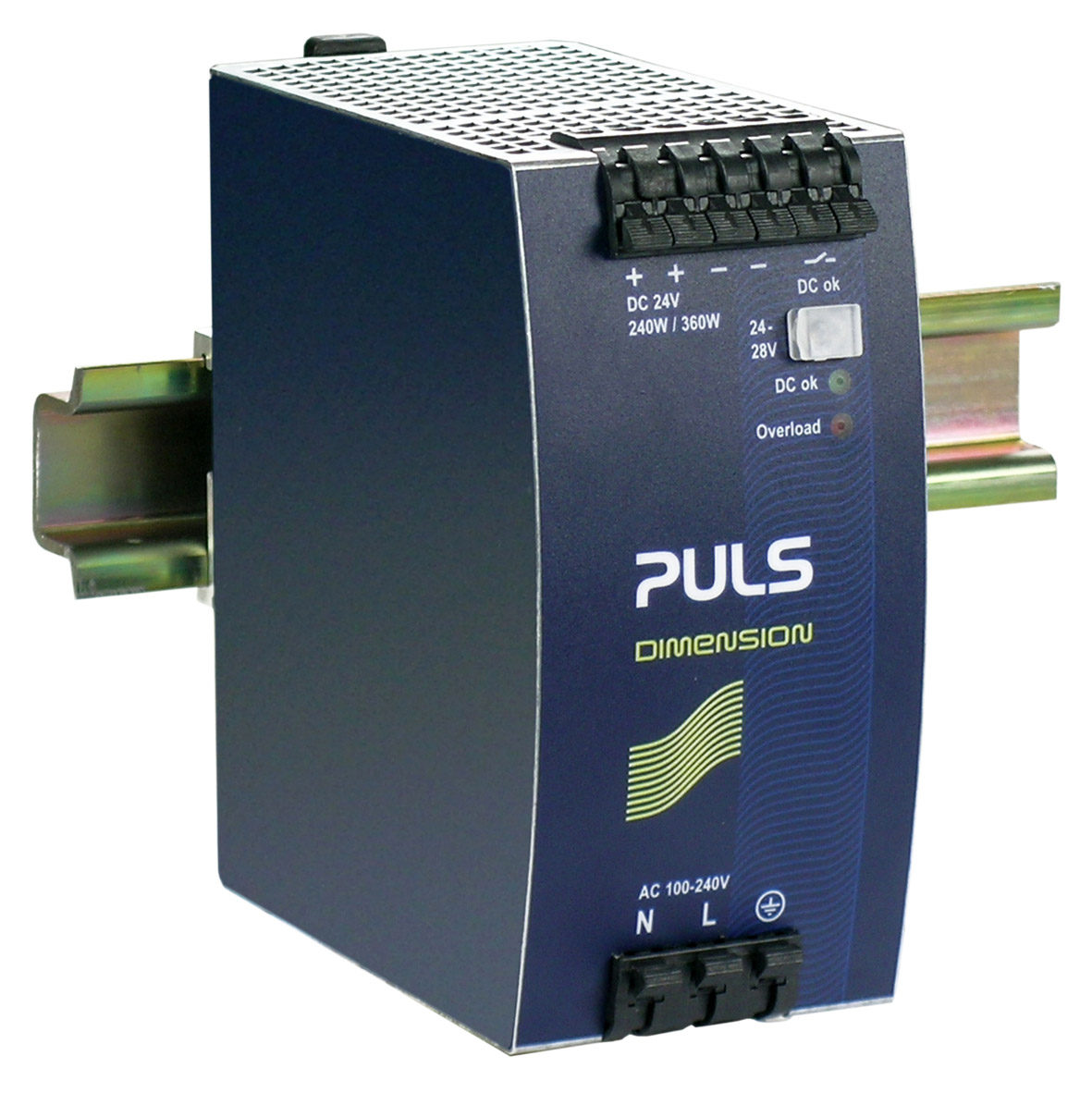

QS10.241-C1

DIN-rail power supplies for 1-phase systems
24V, 10A
conformal coated
Datasheet
DC Output 24 - 28Vdc
10 - 9A
240W
Input AC 100 - 240V (± 15%)
DC 110V - 150V (-20%/+25%)
Size (WxHxD) 60 x 124 x 117mm
Weight 900g
Compare
Product Status: Stock item

Input Data

AC-Input Voltage AC 100 - 240V (± 15%)
DC-Input Voltage DC 110V - 150V (-20%/+25%)
Harmonic Correction active
Power Factor 0.92
Input Inrush Current Limitation active
Input inrush current 4A / 7A
External input fuse recommendation B-6A / C-4A

Output Data

Nominal voltage 24Vdc
Adjustment Range 24 - 28V
Output Current Range 10 - 9A
Output Current 9A at 28V
10A at 24V
Output Power 240W
Power Reserves 50% BonusPower
Ripple and noise voltage max. 50mVpp

Overview

Size (WxHxD) 60mm x 124mm x 117mm
Weight per piece (excl. packaging) 900g
Oper. temperature range -25°C to 70°C
Derating 6W/°C at >+60°C
Mounting Method DIN rail
Efficiency, typ. 93.5%
Power losses, typ. 16.7W
MTBF SN 29500 @ 40°C (h) 581000h
Connection method Spring clamps
DC-OK Signal yes
