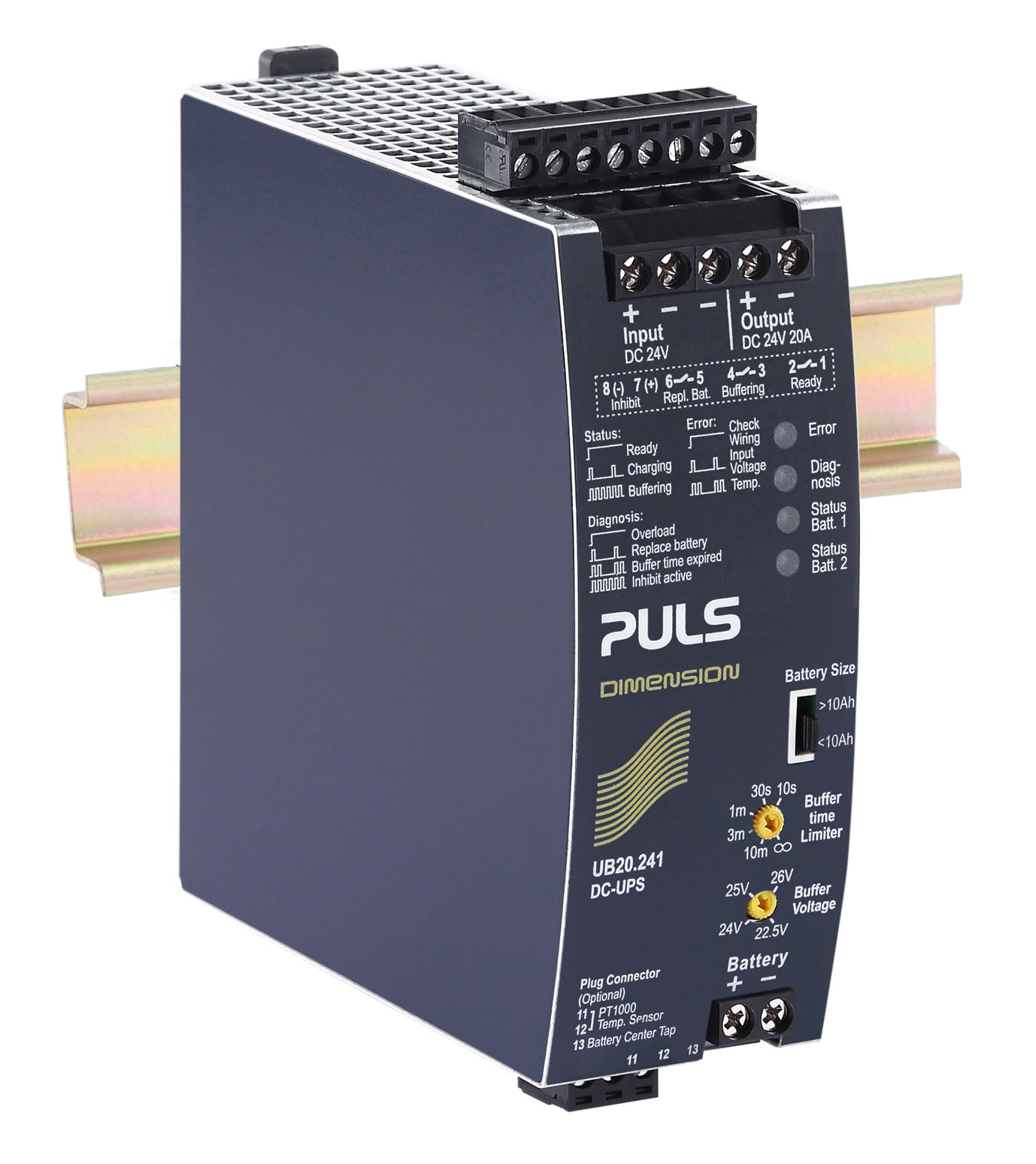

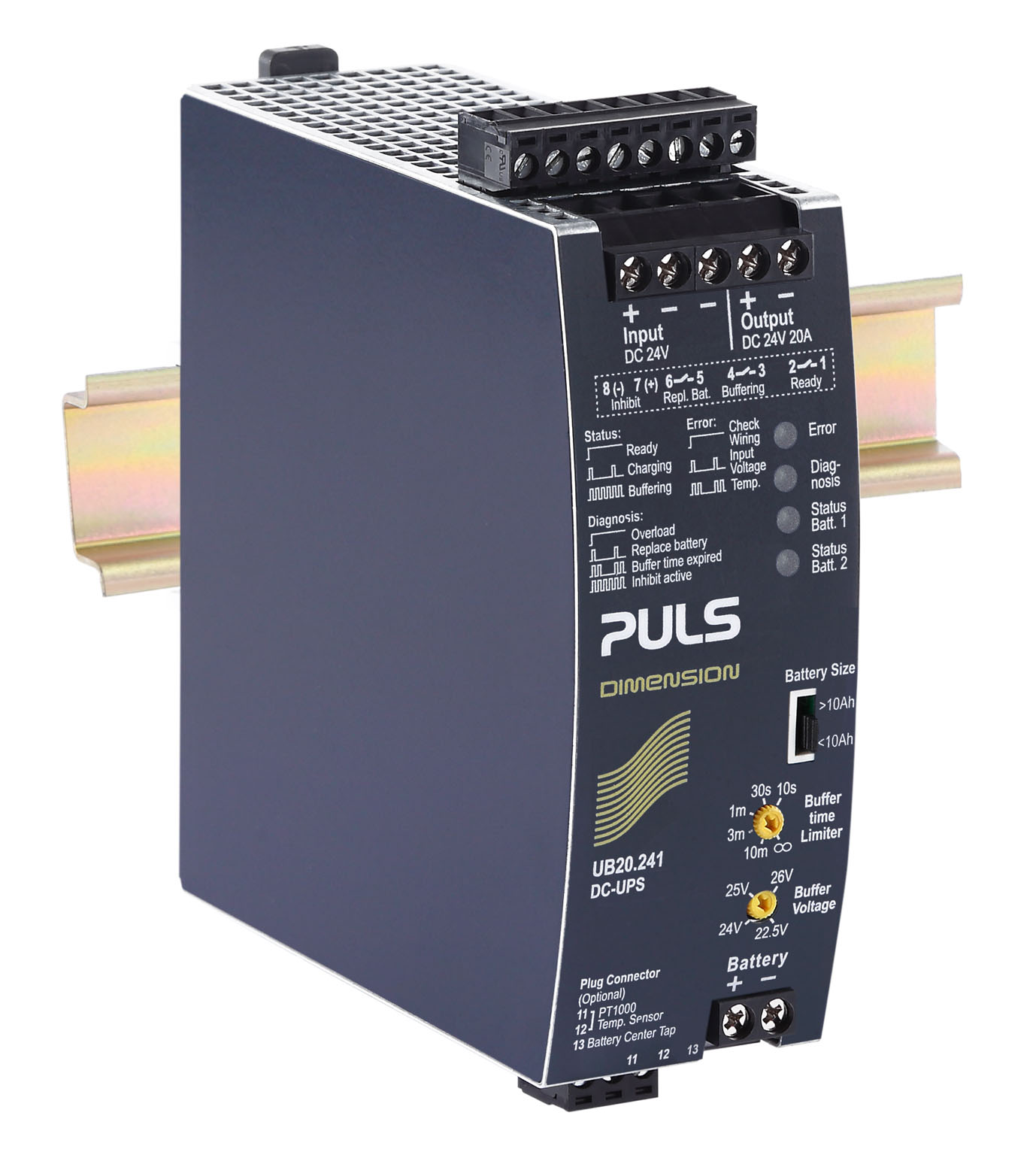

UB20.241

DC-UPS control unit
24 V, 20 A
for battery sizes from 3.9Ah to 150Ah
Datasheet
DC output DC 24 V
20 A
Input DC 24 V (± 25 %)
Dimensions (WxHxD) 46 x 124 x 127 mm
Weight 700 g
Compare

Input data

DC Input voltage DC 24 V (± 25 %)
Int. current consumption (incl. charging current) 2.3/4.3 A

Output data

Nominal voltage 24 Vdc
22.5 Vds
Output current 25 A
20 A
Output power 480 W
Power reserves 50 % BonusPower for typ. 4s
Derating 12 W/°C for +60 to +70 °C

Buffering

Storage element External lead acid battery
Allowed battery size 24 V, 3.9 to 150 Ah
Temperature tracking of the end-of-charge voltage automatically with temp. sensor

Overview

Dimensions (WxHxD) 46 mm x 124 mm x 127 mm
Weight per unit (excl. packaging) 700 g
Mounting method DIN rail
Operating temp. range -40 °C to 70 °C
Connection method Screw terminals
Power losses, typ. 4.6 W
MTBF SN 29500 @ 40 °C (h) 649000 h
