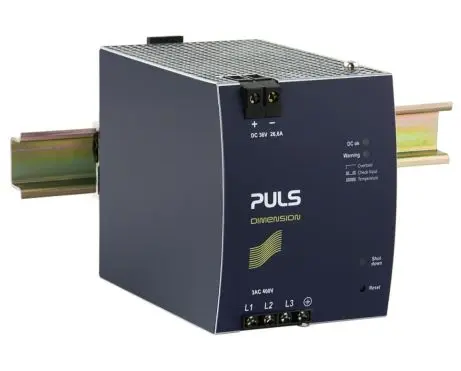

DIN rail power supplies for 3-phase system
36V, 26.6A
DC output 36Vdc
Input AC 400V (± 15%)
Dimensions (WxHxD) 96 x 124 x 159mm
Weight 1400g

Input data

AC Input voltage AC 400V (± 15%)
Harmonic correction active
Power factor 0.93
Input inrush current limitation active
Input inrush current 2A
External input fuse recommendation B-6A / C-3A

Output data

Nominal voltage 36Vdc
Adjustment range 36V
Output current range 26.6A
Output current 26.6A at 36V
Output power 960W
Power reserves 25% power reserves
Derating 24W/°C for >+60°C
Ripple and noise voltage max. 2000mVpp


Dimensions (WxHxD) 96mm x 124mm x 159mm
Weight per unit (excl. packaging) 1400g
Mounting method DIN rail
Operating temp. range -25°C to 70°C
Connection method Screw terminals
Efficiency, typ. 95.5%
Power losses, typ. 45.2W
MTBF SN 29500 @ 40°C (h) 529000h
