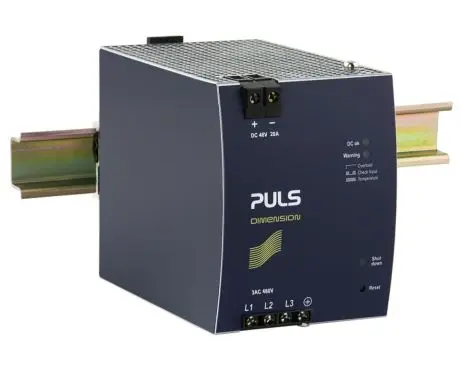

48V, 20A semi-regulated
|Input||AC 480V (± 15%)|
|Dimensions (WxHxD)||96 x 124 x 159mm|
|AC Input voltage||AC 480V (± 15%)|
|Input inrush current limitation||active|
|Input inrush current||2A|
|External input fuse recommendation||B-6A / C-3A|
|Output current range||20A|
|Output current||20A at 48V|
|Power reserves||25% power reserves|
|Derating||24W/°C for >+60°C|
|Ripple and noise voltage max.||2500mVpp|
|Dimensions (WxHxD)||96mm x 124mm x 159mm|
|Weight per unit (excl. packaging)||1400g|
|Mounting method||DIN rail|
|Operating temp. range||-25°C to 70°C|
|Connection method||Screw terminals|
|Power losses, typ.||40W|
|MTBF SN 29500 @ 40°C (h)||540000h|
