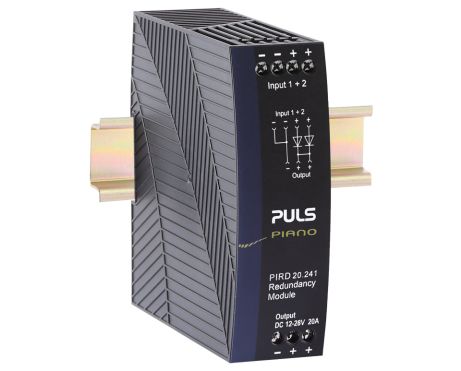

PIRD20.241
Dioden Redundanzmodul
24 V, 20 A DC-OK-Relaiskontakt
Datenblatt
24 V, 20 A DC-OK-Relaiskontakt
| DC Ausgang | 12 - 24 Vdc |
|---|---|
| Eingang | DC 12 V - 28 V (± 25 %) |
| Abmessungen (BxHxT) | 39 x 124 x 124 mm |
| Gewicht | 280 g |
Eingangsdaten
| Eingangsstrom | 2 x 10 A |
|---|---|
| Nennstrom pro Eingang | 10 A |
| DC-Eingangsspannung | DC 12 V - 28 V (± 25 %) |
| Spannungsabfall | 460 mV |
Ausgangsdaten
| Ausgangsstrombereich | 20 A |
|---|---|
| Ausgangsstrom | 20 A |
| Ausgangsstrom Kurzschluss max. | 26 A |
| Derating | 0.5 W/°C für >+55 °C |
Überblick
| Abmessungen (BxHxT) | 39 mm x 124 mm x 124 mm |
|---|---|
| Weight per unit (excl. packaging) | 280 g |
| Montageart | DIN-Schiene |
| Arbeitstemperaturbereich | -40 °C bis 70 °C |
| Anschlussklemmen | Schraubklemmen |
| Verlustleistung, typ. | 4.6 W |
| Verlustleistung Leerlauf, typ. | 0 W |
| MTBF SN 29500 @ 40 °C (h) | 20310000 h |
