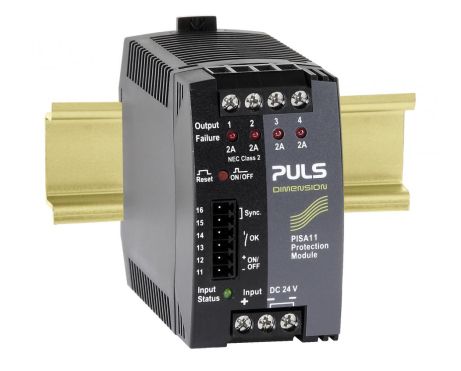

PISA11.402
24 V, 8 A 4 Kanäle; Ausgänge: 4x 2A
DC Ausgang | DC 24 V |
---|---|
2 A , 2 A , 2 A , 2 A | |
Eingang | DC 18 V - 30 V |
Abmessungen (BxHxT) | 45 x 75 x 91 mm |
Gewicht | 120 g |
Eingangsdaten
DC-Eingangsspannung | DC 18 V - 30 V |
---|---|
DC Ruhestrom, typ. | 43 mA |
Erforderliche Eingangsspannung zum Einschalten der Ausgänge, typ. | 21.4 Vdc |
Schwellwert für Eingangsschutzschaltung min./max. | 21 - 21.8 Vdc |
Ausgangsdaten
Einstellbereich | 24 - 28 V |
---|---|
Ausgangsstrom | 2 A , 2 A , 2 A , 2 A |
Ausgangsstrom (Summe aller Ausgänge) | 8 A |
Ausgangsstrombegrenzung min./max. | 9 / 12.7 A |
Einschaltverzögerung der Ausgänge | 270 ms |
Abschaltzeit bei Kurzschluss, typ. | 110 ms |
Überblick
Abmessungen (BxHxT) | 45 mm x 75 mm x 91 mm |
---|---|
Weight per unit (excl. packaging) | 120 g |
Montageart | DIN-Schiene |
Arbeitstemperaturbereich | -25 °C bis 70 °C |
Anschlussklemmen | Schraubklemmen |
Verlustleistung, typ. | 1.3 W |
Verlustleistung Leerlauf, typ. | 1.0 W |
MTBF SN 29500 @ 40 °C (h) | 2323000 h |
