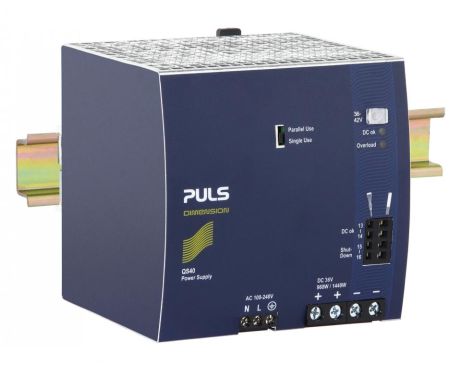

QS40.361
Hutschienen-Netzteile für 1-Phasen-Systeme
36 V, 26.7 A
Datenblatt
36 V, 26.7 A
| DC Ausgang | 36 - 42 Vdc |
|---|---|
| 26.7 - 22.9 A | |
| 960 W | |
| Eingang | AC 100 - 240 V (-15 %/+10 %) |
| Abmessungen (BxHxT) | 125 x 124 x 127 mm |
| Gewicht | 1900 g |
Eingangsdaten
| AC-Eingangsspannung | AC 100 - 240 V (-15 %/+10 %) |
|---|---|
| Oberwellenkorrektur | aktiv |
| Leistungsfaktor | 0.99 |
| Einschaltstrombegrenzung | aktiv |
| Einschaltstrom (Spitze) | 17 A / 11 A |
| Externe Eingangsabsicherung min. | B-16 A / C-10 A |
Ausgangsdaten
| Nennspannung | 36 Vdc |
|---|---|
| Einstellbereich | 36 - 42 V |
| Ausgangsstrombereich | 26.7 - 22.9 A |
| Ausgangsstrom | 22.9 A bei 42 V |
| 26.7 A bei 36 V | |
| Ausgangsleistung | 960 W |
| Leistungsreserve | 50 % BonusPower |
| Derating | 24 W/°C für >+60 °C |
| max. Restwelligkeit | 130 mVpp |
Überblick
| Abmessungen (BxHxT) | 125 mm x 124 mm x 127 mm |
|---|---|
| Weight per unit (excl. packaging) | 1900 g |
| Montageart | DIN-Schiene |
| Arbeitstemperaturbereich | -25 °C bis 70 °C |
| Anschlussklemmen | Schraubklemmen |
| Wirkungsgrad, typ. | 94.6 % |
| Verlustleistung, typ. | 54.8 W |
| MTBF SN 29500 @ 40 °C (h) | 300000 h |
| DC-OK signal | ja |
