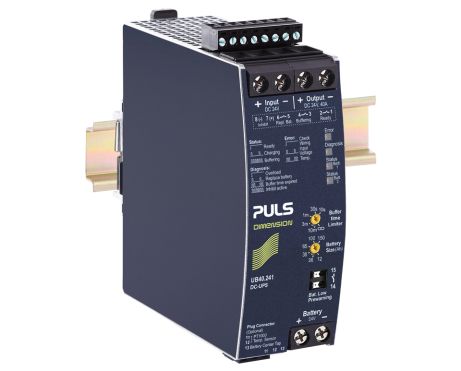

UB40.241
DC-USV Steuergerät
24 V, 40 A für Batteriegrößen von 12 bis 200Ah
Datenblatt
24 V, 40 A für Batteriegrößen von 12 bis 200Ah
| DC Ausgang | DC 24 V |
|---|---|
| 40 A | |
| Eingang | DC 24 V (± 25 %) |
| Abmessungen (BxHxT) | 46 x 124 x 127 mm |
| Gewicht | 530 g |
Eingangsdaten
| DC-Eingangsspannung | DC 24 V (± 25 %) |
|---|---|
| Eingangsstromverbrauch (inkl. Ladestrom) | 3.2 / 6.2 A |
Ausgangsdaten
| Nennspannung | 24 Vdc |
|---|---|
| Ausgangsstrom | 40 A |
| Ausgangsleistung | 960 W |
| Derating | 24 W/°C für +50 to +70 °C |
Puffer
| Speichermedium | External lead acid battery |
|---|---|
| Erlaubte Batteriegröße | 12 Ah - 200 Ah |
| Temperaturnachführung der Ladeschlussspannung | automatically with temp. sensor |
Überblick
| Abmessungen (BxHxT) | 46 mm x 124 mm x 127 mm |
|---|---|
| Weight per unit (excl. packaging) | 530 g |
| Montageart | DIN-Schiene |
| Arbeitstemperaturbereich | -25 °C bis 70 °C |
| Anschlussklemmen | Schraubklemmen |
