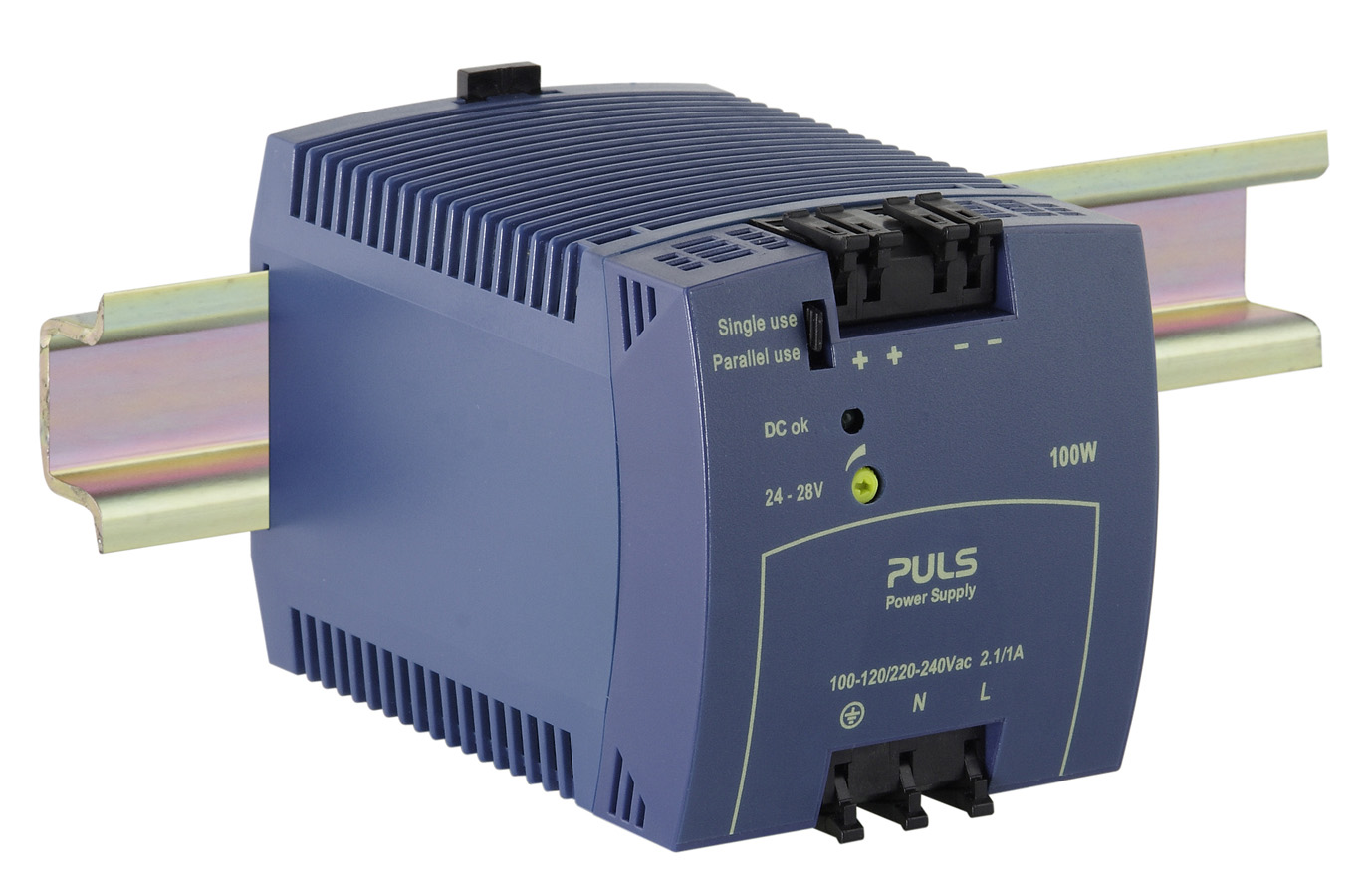

DIN rail power supplies for 1-phase system
24V, 4.2A
conformal coating
DC output 24 - 28Vdc
4.2 - 3.6A
Input AC 100 - 120 / 220 - 240V (-15%/+10%)
DC 290V (-25%/+20%)
Dimensions (WxHxD) 73 x 75 x 103mm
Weight 360g

Input data

AC Input voltage AC 100 - 120 / 220 - 240V (-15%/+10%)
DC Input voltage DC 290V (-25%/+20%)
Power factor 0.55
Input inrush current limitation NTC
Input inrush current 22A / 37A
External input fuse recommendation B-10A / C-6A

Output data

Nominal voltage 24Vdc
Adjustment range 24 - 28V
Output current range 4.2 - 3.6A
Output current 3.6A at 28V
4.2A at 24V
Output power 100W
Derating 2.5W/°C for >+60°C
Ripple and noise voltage max. 50mVpp


Dimensions (WxHxD) 73mm x 75mm x 103mm
Weight per unit (excl. packaging) 360g
Mounting method DIN rail
Connection method Spring clamps
Efficiency, typ. 90%
Power losses, typ. 11.4W
MTBF SN 29500 @ 40°C (h) 500000h
