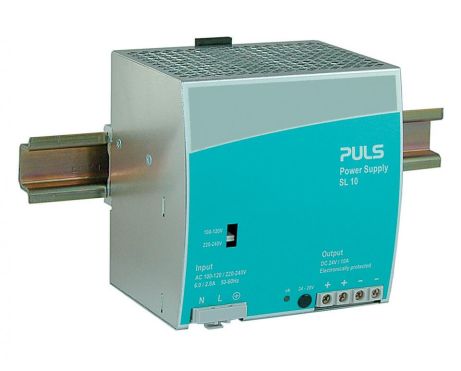

SL10.100

DIN rail power supplies for 1-phase system
24 V, 10 A
Datasheet
DC output 24 - 28 Vdc
10 - 8.6 A
240 W
Input AC 100 - 120 / 210 - 240 V
Dimensions (WxHxD) 120 x 124 x 102 mm
Weight 980 g
Compare

Input data

AC Input voltage AC 100 - 120 / 210 - 240 V

Output data

Nominal voltage 24 Vdc
Adjustment range 24 - 28 V
Output current range 10 - 8.6 A
Output current 8.6 A at 28 V
10 A at 24 V
Output power 240 W
Ripple and noise voltage max. 30 mVpp

Overview

Dimensions (WxHxD) 120 mm x 124 mm x 102 mm
Weight per unit (excl. packaging) 980 g
Mounting method DIN rail
Connection method Screw terminals
Efficiency, typ. 1 %
