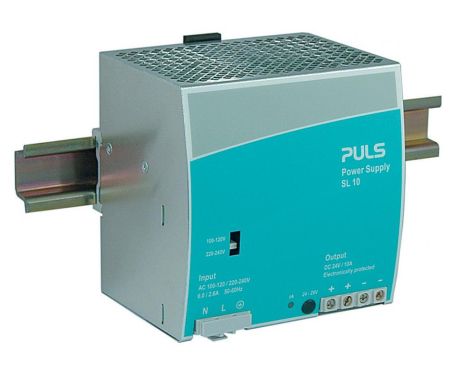

DIN rail power supplies for 1-phase system
24 V, 10 A
with passive PFC-inductor
Datasheet
DC output
24 - 28 Vdc
10 - 8.6 A
240 W
Input
AC 100 - 120 / 210 - 240 V
Dimensions (WxHxD)
120 x 124 x 102 mm
Weight
1195 g
Input data
AC Input voltage
AC 100 - 120 / 210 - 240 V
Output data
Nominal voltage
24 Vdc
Adjustment range
24 - 28 V
Output current range
10 - 8.6 A
Output current
8.6 A at 28 V
10 A at 24 V
Output power
240 W
Ripple and noise voltage max.
30 mVpp
Overview
Dimensions (WxHxD)
120 mm x 124 mm x 102 mm
Weight per unit (excl. packaging)
1195 g
Mounting method
DIN rail
Connection method
Screw terminals
115 / 230 V switchable input, passive PFC
Efficiency up to 89.4 %
PFC inductor included, fulfills EN-61000-3-2
20 % power reserves for loads with a higher short-term power requirement
Full output power between 0 and +60 °C
Article number
SL10.105
Product status
Discontinued
UPC code
875404000280
Warranty period (months)
36
Country of origin
Czech Republic
Packaging unit
1 PU pc
Weight per piece (excl. packaging)
1195 g
E classification
eClass 5.1 27049002
eClass 6.x 27049002
eClass 7.x 27049002
eClass 8.0 27049002
eClass 9.0 27040701
ETIM 4.0 EC000599
ETIM 5.0 EC002540
Customs tariff number
85044083
