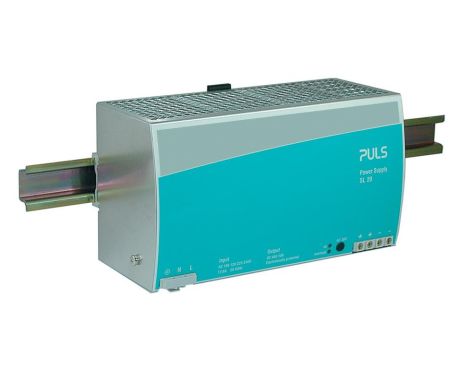

SL20.113
DIN rail power supplies for 1-phase system
48 V, 10 A
Datasheet
48 V, 10 A
| DC output | 48 - 56 Vdc |
|---|---|
| 10 - 8.6 A | |
| 480 W | |
| Input | AC 100 - 120 / 220 - 240 V |
| Dimensions (WxHxD) | 220 x 124 x 102 mm |
| Weight | 1800 g |
Input data
| AC Input voltage | AC 100 - 120 / 220 - 240 V |
|---|
Output data
| Nominal voltage | 48 Vdc |
|---|---|
| Adjustment range | 48 - 56 V |
| Output current range | 10 - 8.6 A |
| Output current | 8.6 A at 56 V |
| 10 A at 48 V | |
| Output power | 480 W |
Overview
| Dimensions (WxHxD) | 220 mm x 124 mm x 102 mm |
|---|---|
| Weight per unit (excl. packaging) | 1800 g |
| Mounting method | DIN rail |
| Connection method | Screw terminals |
