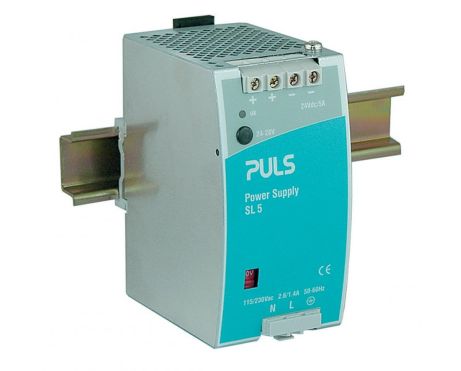

SL5.102
DIN rail power supplies for 1-phase system
24 V, 5 A adjustable output voltage
Datasheet
24 V, 5 A adjustable output voltage
| DC output | 24 - 28 Vdc |
|---|---|
| 5 - 4.3 A | |
| 120 W | |
| Input | AC 100 - 120 / 200 - 240 V |
| DC 300 V (-20 %/+25 %) | |
| Dimensions (WxHxD) | 64 x 124 x 102 mm |
| Weight | 620 g |
Input data
| AC Input voltage | AC 100 - 120 / 200 - 240 V |
|---|---|
| DC Input voltage | DC 300 V (-20 %/+25 %) |
Output data
| Nominal voltage | 24 Vdc |
|---|---|
| Adjustment range | 24 - 28 V |
| Output current range | 5 - 4.3 A |
| Output current | 4.3 A at 28 V |
| 5 A at 24 V | |
| Output power | 120 W |
| Ripple and noise voltage max. | 25 mVpp |
Overview
| Dimensions (WxHxD) | 64 mm x 124 mm x 102 mm |
|---|---|
| Weight per unit (excl. packaging) | 620 g |
| Mounting method | DIN rail |
| Connection method | Screw terminals |
