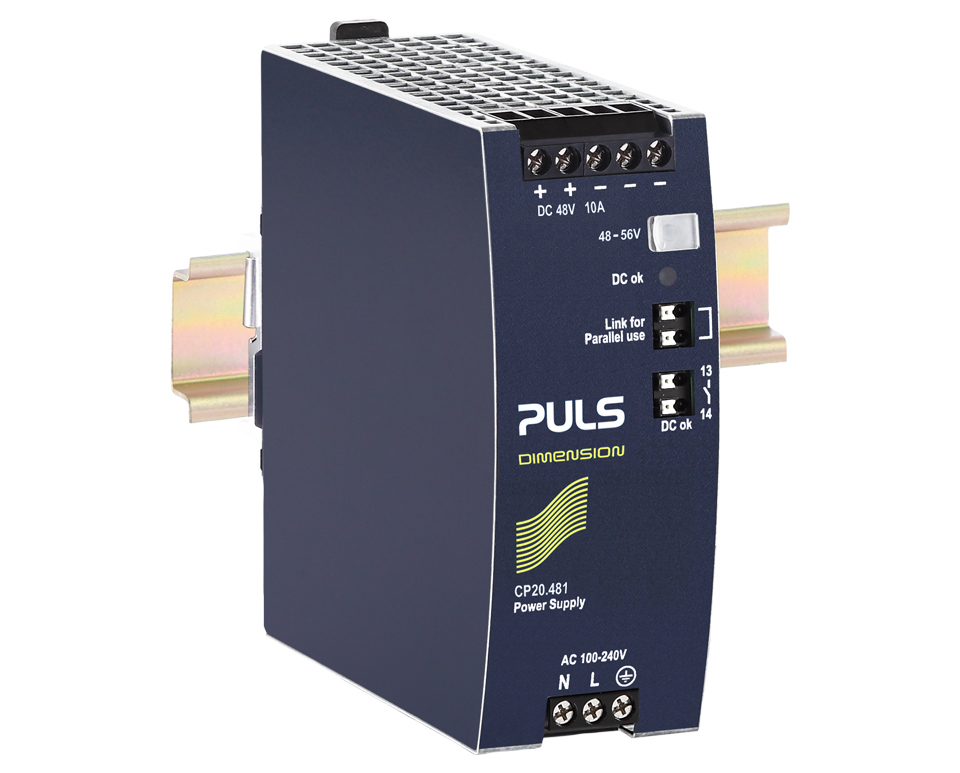

DIN rail power supplies for 1-phase system
48V, 10A
DC-OK relay contact
DC output 48 - 56Vdc
10 - 8.6A
Input AC 100 - 240V (± 10%)
DC 110V - 150V (± 20%)
Dimensions (WxHxD) 48 x 124 x 127mm
Weight 830g

Input data

AC Input voltage AC 100 - 240V (± 10%)
DC Input voltage DC 110V - 150V (± 20%)
Harmonic correction active
Power factor 0.98
Input inrush current limitation active
Input inrush current 4.5A / 5.5A
External input fuse recommendation B-10A / C-10A

Output data

Nominal voltage 48Vdc
Adjustment range 48 - 56V
Output current range 10 - 8.6A
Output current 8.6A at 56V
10A at 48V
Output power 480W
Power reserves 20% Power Boost
Derating 6.4W/°C for +45 to +60°C
Ripple and noise voltage max. 50mVpp


Dimensions (WxHxD) 48mm x 124mm x 127mm
Weight per unit (excl. packaging) 830g
Mounting method DIN rail
Housing material Metal
Operating temp. range -25°C to 70°C
Connection method Screw terminals
Efficiency, typ. 96.3%
Power losses, typ. 18.4W
MTBF SN 29500 @ 40°C (h) 540000h
DC-OK signal yes
