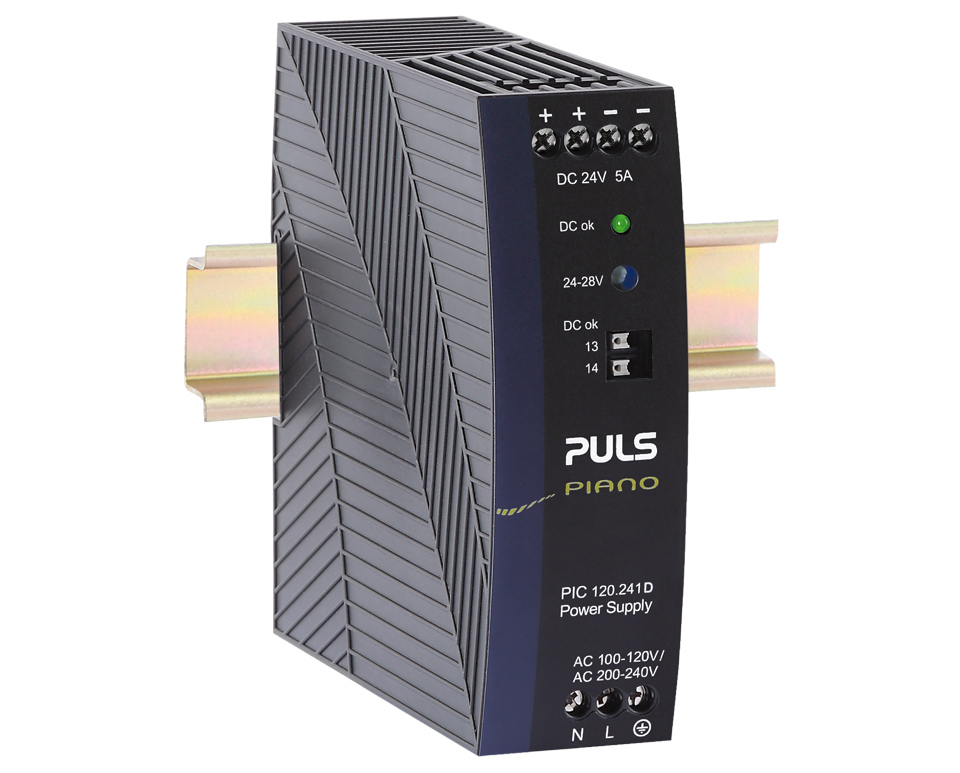

24V, 5A DC-OK relay contact
|DC output||24 - 28Vdc|
|5 - 4.3A|
|Input||AC 100 - 120 / 200 - 240V (± 10%)|
|Dimensions (WxHxD)||39 x 124 x 124mm|
|AC Input voltage||AC 100 - 120 / 200 - 240V (± 10%)|
|Input inrush current limitation||NTC|
|Input inrush current||22A / 33A|
|External input fuse recommendation||B-10A / C-6A|
|Adjustment range||24 - 28V|
|Output current range||5 - 4.3A|
|Output current||4.3A at 28V|
|5A at 24V|
|Derating||3W/°C for +55 to +70°C|
|Ripple and noise voltage max.||100mVpp|
|Dimensions (WxHxD)||39mm x 124mm x 124mm|
|Weight per unit (excl. packaging)||370g|
|Mounting method||DIN rail|
|Connection method||Screw terminals|
|Power losses, typ.||10.0W|
