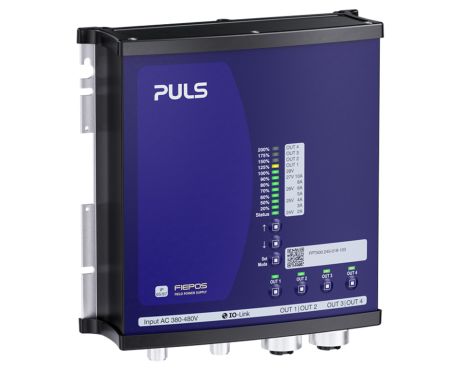

IP65/67 Stromversorgung
24V, 20A
IO-Link | Eingang: M12-S | Ausgang: 2x 7/8" 4pin
DC Ausgang 24 - 28Vdc
20.8 - 17.9A
Eingang AC 380 - 480V (± 15%)
Abmessungen (BxHxT) 181 x 183 x 59mm
Gewicht 1200g


AC-Eingangsspannung AC 380 - 480V (± 15%)
Leistungsfaktor 0.95
Einschaltstrombegrenzung aktiv
Einschaltstrom (Spitze) 1.9A / 1.8A
Externe Eingangsabsicherung min. B-6A / C-6A


Nennspannung 24Vdc
Einstellbereich 24 - 28V
Ausgangsstrombereich 20.8 - 17.9A
Ausgangsstrom 17.9A bei 28V
20.8A bei 24V
Ausgangsleistung 500W
Leistungsreserve 1000W (bis zu 5s)
Derating 10W/°C für +45 to +70°C
33W/1000m für altitudes >2000m
max. Restwelligkeit 100mVpp


Abmessungen (BxHxT) 181mm x 183mm x 59mm
Weight per unit (excl. packaging) 1200g
Arbeitstemperaturbereich -25°C bis 70°C
Anschlussklemmen Input: M12-S | Output: 7/8" 4pin
Wirkungsgrad, typ. 95.6%
Verlustleistung, typ. 23W
MTBF SN 29500 @ 40°C (h) 233000h
