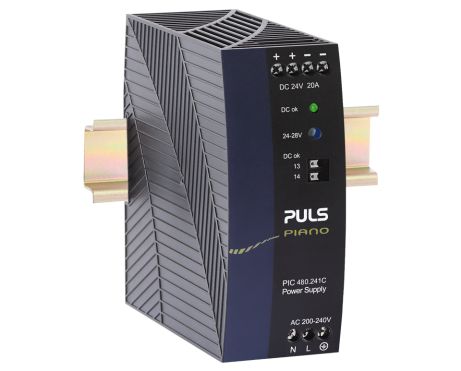

PIC480.241C-C1
Hutschienen-Netzteile für 1-Phasen-Systeme
24 V, 20 A schutzlackiert
Datenblatt
24 V, 20 A schutzlackiert
| DC Ausgang | 24 - 28 Vdc |
|---|---|
| 20 - 17.1 A | |
| 480 W | |
| Eingang | AC 200 - 240 V (± 10 %) |
| Abmessungen (BxHxT) | 49 x 124 x 124 mm |
| Gewicht | 620 g |
Eingangsdaten
| AC-Eingangsspannung | AC 200 - 240 V (± 10 %) |
|---|---|
| Leistungsfaktor | 0.99 |
| Einschaltstrombegrenzung | NTC |
| Einschaltstrom (Spitze) | 26 A |
| Externe Eingangsabsicherung min. | B-10 A / C-6 A |
Ausgangsdaten
| Nennspannung | 24 Vdc |
|---|---|
| Einstellbereich | 24 - 28 V |
| Ausgangsstrombereich | 20 - 17.1 A |
| Ausgangsstrom | 17.1 A bei 28 V |
| 20 A bei 24 V | |
| Ausgangsleistung | 480 W |
| Derating | 8 W/°C für +55 to +70 °C |
| max. Restwelligkeit | 100 mVpp |
Überblick
| Abmessungen (BxHxT) | 49 mm x 124 mm x 124 mm |
|---|---|
| Weight per unit (excl. packaging) | 620 g |
| Montageart | DIN-Schiene |
| Arbeitstemperaturbereich | -25 °C bis 70 °C |
| Anschlussklemmen | Schraubklemmen |
| Wirkungsgrad, typ. | 95.7 % |
| Verlustleistung, typ. | 21.6 W |
| MTBF SN 29500 @ 40 °C (h) | 482000 h |
| DC-OK signal | ja |
