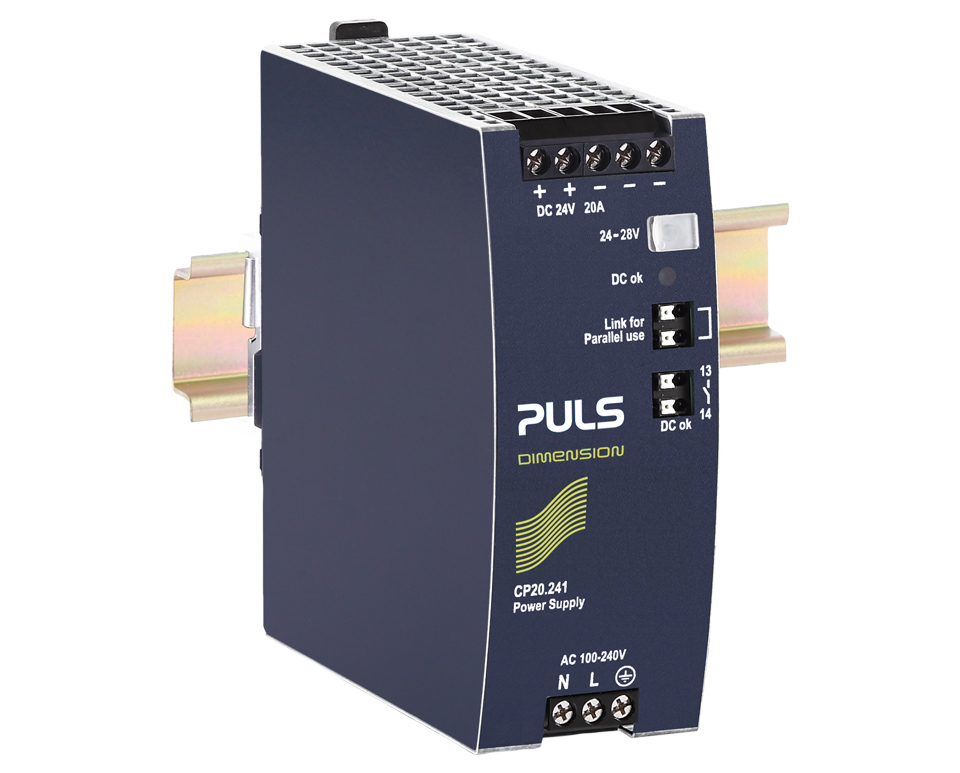

CP20.241

DIN rail power supplies for 1-phase system
24 V, 20 A
Datasheet
DC output 24 - 28 Vdc
20 - 17.1 A
480 W
Input AC 100 - 240 V (± 10 %)
DC 110 V - 150 V (± 20 %)
Dimensions (WxHxD) 48 x 124 x 127 mm
Weight 830 g
Compare

Input data

AC Input voltage AC 100 - 240 V (± 10 %)
DC Input voltage DC 110 V - 150 V (± 20 %)
Harmonic correction active
Power factor 0.98
Input inrush current limitation active
Input inrush current 10 A / 4.5 A
External input fuse recommendation B-10 A / C-10 A

Output data

Nominal voltage 24 Vdc
Adjustment range 24 - 28 V
Output current range 20 - 17.1 A
Output current 17.1 A at 28 V
20 A at 24 V
Output power 480 W
Power reserves 20 % Power Boost
Derating 12 W/°C for >60 °C
Ripple and noise voltage max. 50 mVpp

Overview

Dimensions (WxHxD) 48 mm x 124 mm x 127 mm
Weight per unit (excl. packaging) 830 g
Mounting method DIN rail
Operating temp. range -25 °C to 70 °C
Connection method Screw terminals
Efficiency, typ. 95.6 %
Power losses, typ. 22.1 W
MTBF SN 29500 @ 40 °C (h) 590000 h
DC-OK signal yes
