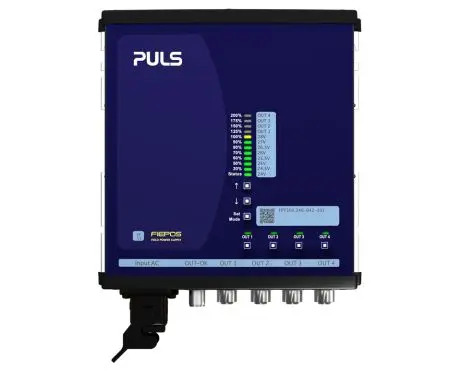

FPT300.246-042-101
New
3-phase IP54, IP65 and IP67 power supply
24 V, 12.5 A Input: HanQ5/0 | Output: 4x M12-A
Datasheet
24 V, 12.5 A Input: HanQ5/0 | Output: 4x M12-A
| DC output | 24 - 28 Vdc |
|---|---|
| 12.5 - 10.7 A | |
| 300 W | |
| Input | AC 380 - 480 V (± 15 %) |
| Dimensions (WxHxD) | 182 x 272 x 70 mm |
| Weight | 1550 g |
Input data
| AC Input voltage | AC 380 - 480 V (± 15 %) |
|---|---|
| Power factor | 0.9 |
| Input inrush current limitation | active |
| Input inrush current | 1.5 A / 1.5 A |
| External input fuse recommendation | B-6 A / C-6 A |
Output data
| Nominal voltage | 24 Vdc |
|---|---|
| Adjustment range | 24 - 28 V |
| Output current range | 12.5 - 10.7 A |
| Output current | 10.7 A at 28 V |
| 12.5 A at 24 V | |
| Output power | 300 W |
| Power reserves | (up to 60s) |
| Derating | 10 W/°C for +55 to +70 °C |
| Ripple and noise voltage max. | 100 mVpp |
Overview
| Dimensions (WxHxD) | 182 mm x 272 mm x 70 mm |
|---|---|
| Weight per unit (excl. packaging) | 1550 g |
| Operating temp. range | -25 °C to 70 °C |
| Connection method | Input: HanQ5/0 | Output: M12-A |
| Efficiency, typ. | 95 % |
| Power losses, typ. | 15.8 W |
| MTBF SN 29500 @ 40 °C (h) | 612000 h |
| DC-OK signal | yes |
