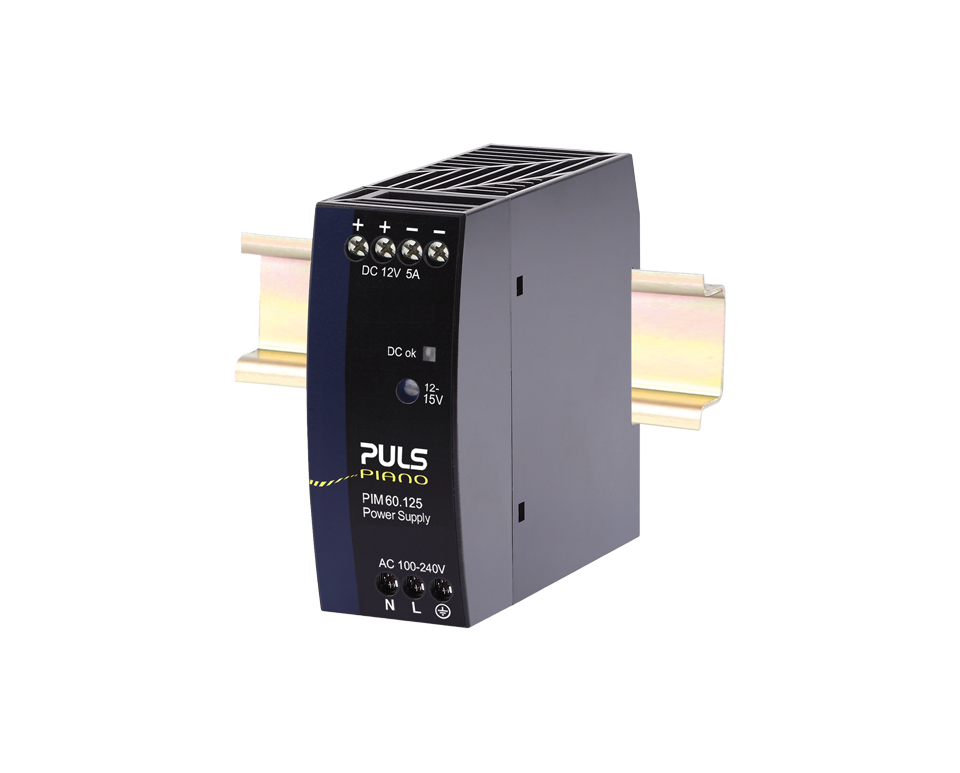

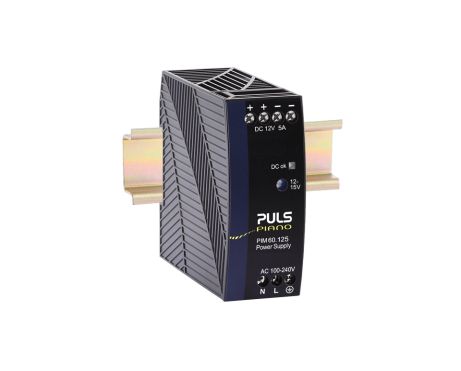

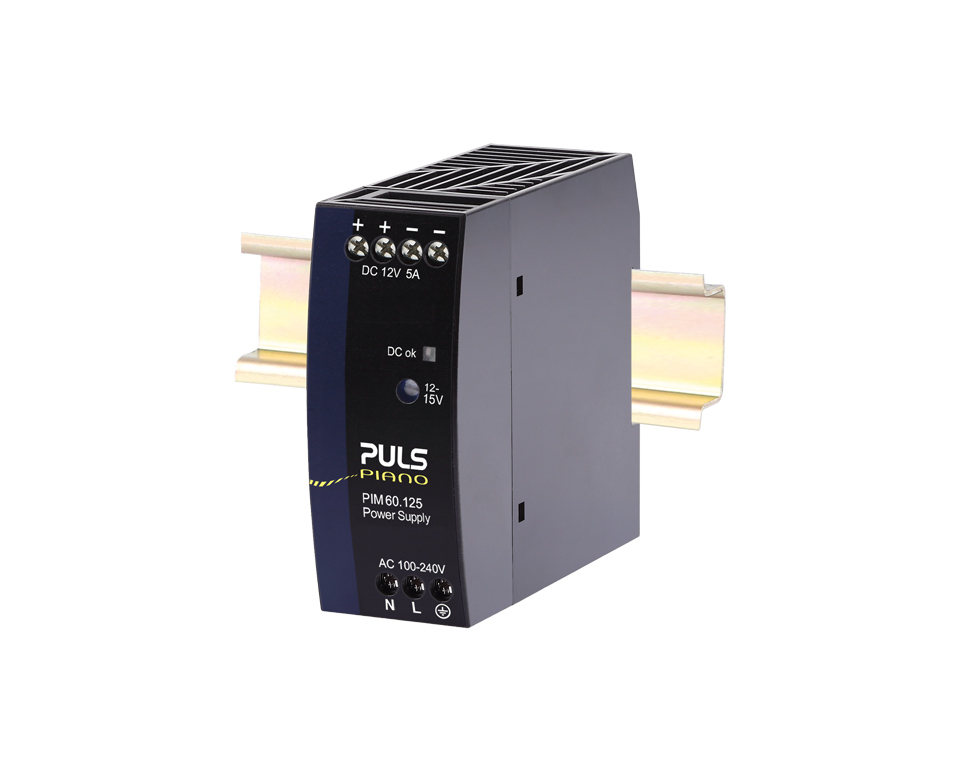

PIM60.125

New
DIN rail power supplies for 1-phase system
12 V, 5 A
screw terminals, NEC Class 2
Datasheet
DC output 12 - 15 Vdc
5 - 4 A
60 W
Input AC 100 - 240 V (± 10 %)
Dimensions (WxHxD) 36 x 90 x 91 mm
Weight 225 g
Compare

Input data

AC Input voltage AC 100 - 240 V (± 10 %)
Power factor 0.470000
Input inrush current limitation NTC
Input inrush current 15 A / 36 A
External input fuse recommendation B-6 A / C-4 A

Output data

Nominal voltage 12 Vdc
Adjustment range 12 - 15 V
Output current range 5 - 4 A
Output current 4 A at 15 V
5 A at 12 V
Output power 60 W
Derating 1.44 W/°C for +60 to +70 °C
Ripple and noise voltage max. 100 mVpp

Overview

Dimensions (WxHxD) 36 mm x 90 mm x 91 mm
Weight per unit (excl. packaging) 225 g
Mounting method DIN rail
Housing material Polycarbonate
Operating temp. range -10 °C to 70 °C
Connection method Screw terminals
Efficiency, typ. 90.7 %
Power losses, typ. 6.2 W
MTBF SN 29500 @ 40 °C (h) 1673000 h
DC-OK signal yes
