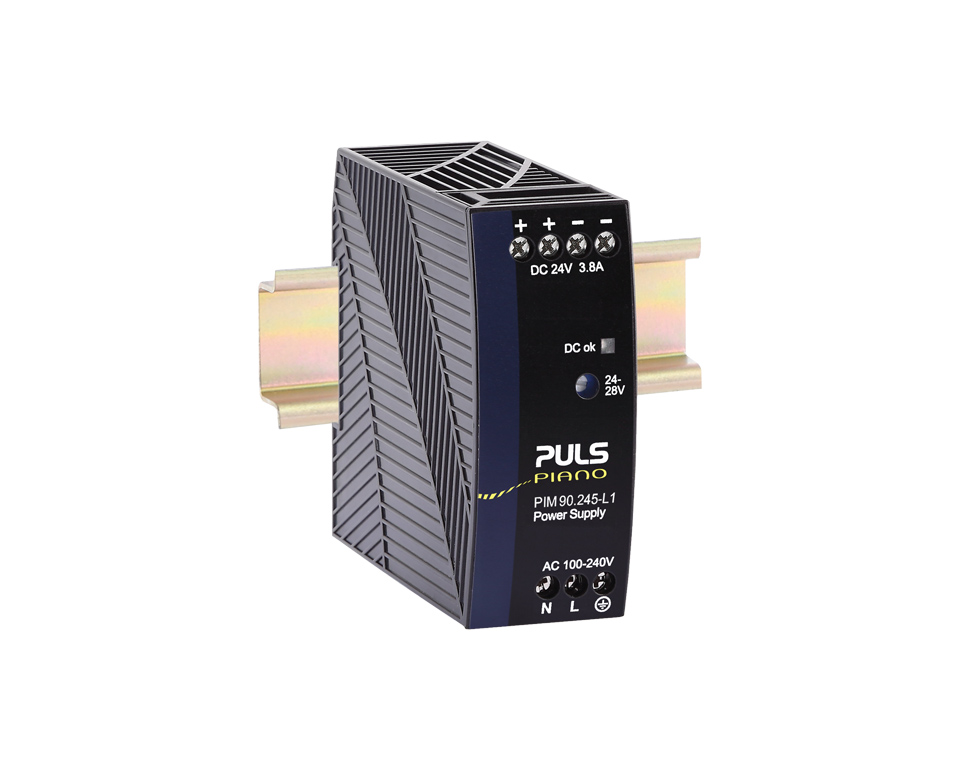

24V, 3.8A screw terminals
|DC output||24 - 28Vdc|
|3.8 - 3.2A|
|Input||AC 100 - 240V (± 10%)|
|Dimensions (WxHxD)||36 x 90 x 91mm|
|AC Input voltage||AC 100 - 240V (± 10%)|
|Input inrush current||40A|
|External input fuse recommendation||B-6A / C-4A|
|Adjustment range||24 - 28V|
|Output current range||3.8 - 3.2A|
|Output current||3.2A at 28V|
|3.8A at 24V|
|Derating||2.4W/°C for +60 to +70°C|
|Ripple and noise voltage max.||100mVpp|
|Dimensions (WxHxD)||36mm x 90mm x 91mm|
|Weight per unit (excl. packaging)||270g|
|Mounting method||DIN rail|
|Connection method||Screw terminals|
|Power losses, typ.||7.9W 6W|
|MTBF SN 29500 @ 40°C (h)||1 446 000h|
