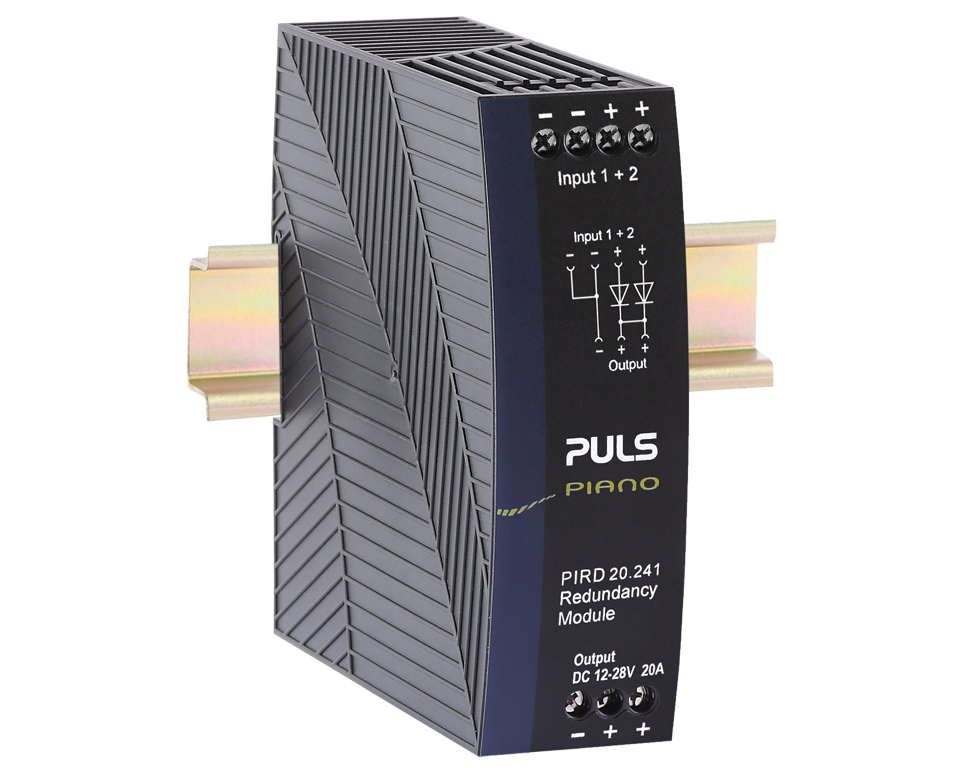

24V, 20A 2x 10A; DC-OK relay contact
|DC output||12 - 24Vdc|
|Input||DC 12V - 28V (± 25%)|
|Dimensions (WxHxD)||39 x 124 x 124mm|
|Input current||2 x 10A|
|Nominal current per input||10A|
|DC Input voltage||DC 12V - 28V (± 25%)|
|Output current range||20A|
|Output current short circuit max.||26A|
|Derating||0.5W/°C for >+55°C|
|Dimensions (WxHxD)||39mm x 124mm x 124mm|
|Weight per unit (excl. packaging)||280g|
|Mounting method||DIN rail|
|Operating temp. range||-40°C to 70°C|
|Connection method||Screw terminals|
|Power losses, typ.||4.6W|
|No-load losses, typ.||0W|
|MTBF SN 29500 @ 40°C (h)||20310000h|
