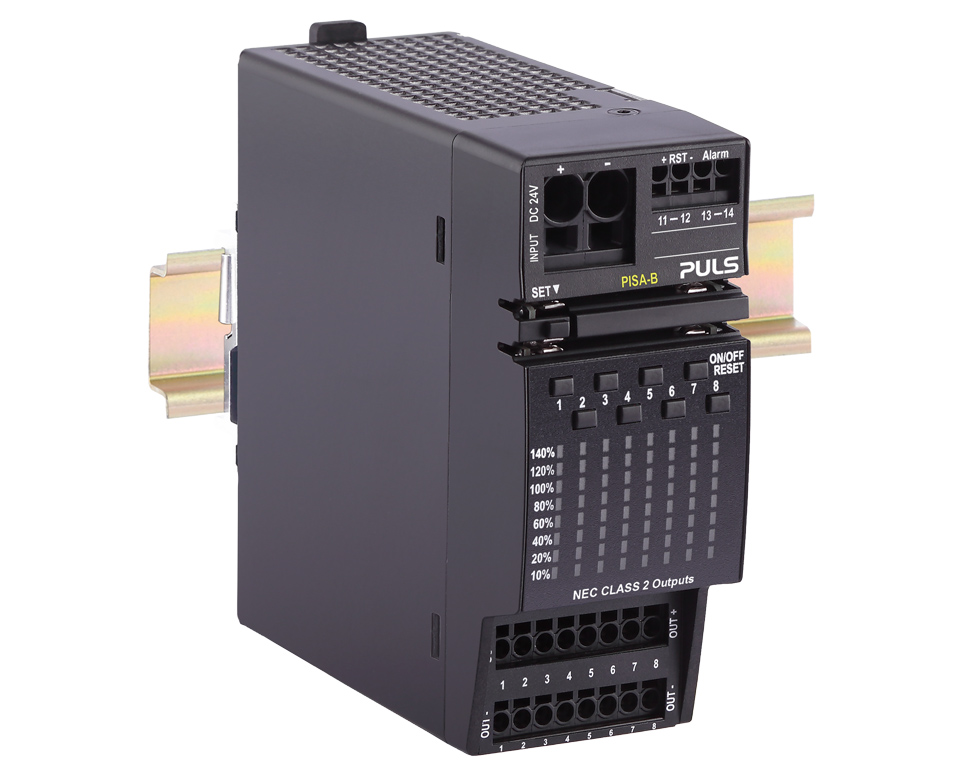

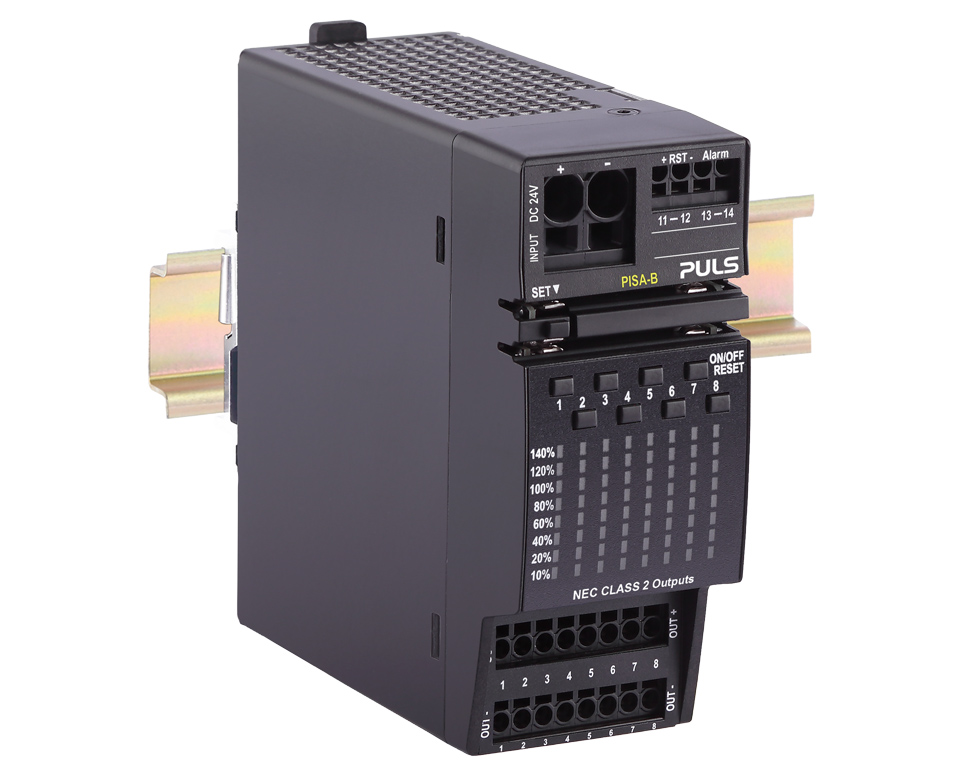

PISA-B-8CL2-B4

New
Electronic circuit breaker
24 V, 30 A
8 output channels: 8x NEC Class 2; 3.75A per channel; Digital coded alarm signal
Datasheet
DC output DC 24 V
Input DC 19.2 V - 30 V
Dimensions (WxHxD) 52 x 124 x 130 mm
Weight 370 g
Compare

Input data

DC Input voltage DC 19.2 V - 30 V
DC Input current at no load, typ. 35 mA
Input voltage required to switch on the outputs, typ. 19 Vdc

Output data

Output current (sum of all outputs) 30 A
Turn-on delay of outputs 750 ms

Overview

Dimensions (WxHxD) 52 mm x 124 mm x 130 mm
Weight per unit (excl. packaging) 370 g
Mounting method DIN rail
Housing material Metal
Operating temp. range -25 °C to 70 °C
Connection method Push-in clamps
Power losses, typ. 7 W
No-load losses, typ. 1 W
MTBF SN 29500 @ 40 °C (h) 590000 h
