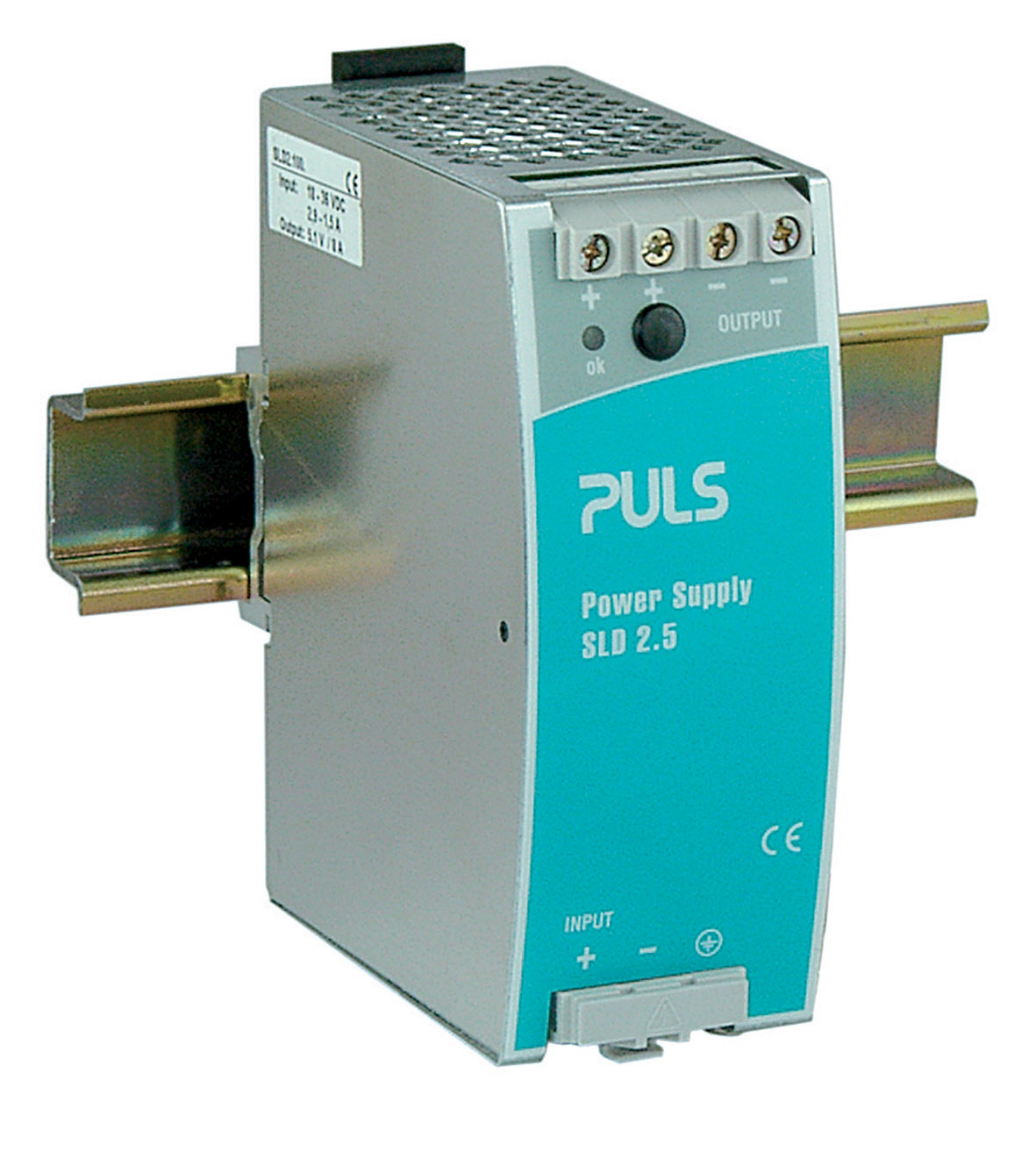

SLD2.100
DC/DC converter
5 V, 8 A
Datasheet
5 V, 8 A
| DC output | 5 - 5.5 Vdc |
|---|---|
| 8 A | |
| 40 W | |
| Input | DC 24 V (-25 %/+50 %) |
| Dimensions (WxHxD) | 49 x 124 x 102 mm |
| Weight | 470 g |
Input data
| DC Input voltage | DC 24 V (-25 %/+50 %) |
|---|
Output data
| Nominal voltage | 5 Vdc |
|---|---|
| Adjustment range | 5 - 5.5 V |
| Output current range | 8 A |
| Output current | 5.5 V |
| 8 A at 5 V | |
| Output power | 40 W |
| Derating | 1.5 W/°C for >+60 °C |
| Ripple and noise voltage max. | 50 mVpp |
Overview
| Dimensions (WxHxD) | 49 mm x 124 mm x 102 mm |
|---|---|
| Weight per unit (excl. packaging) | 470 g |
| Mounting method | DIN rail |
| Operating temp. range | 0 °C to 40 °C |
| Connection method | Screw terminals |
| Efficiency, typ. | 82 % |
| Power losses, typ. | 8.5 W |
| MTBF SN 29500 @ 40 °C (h) | 510000 h |
