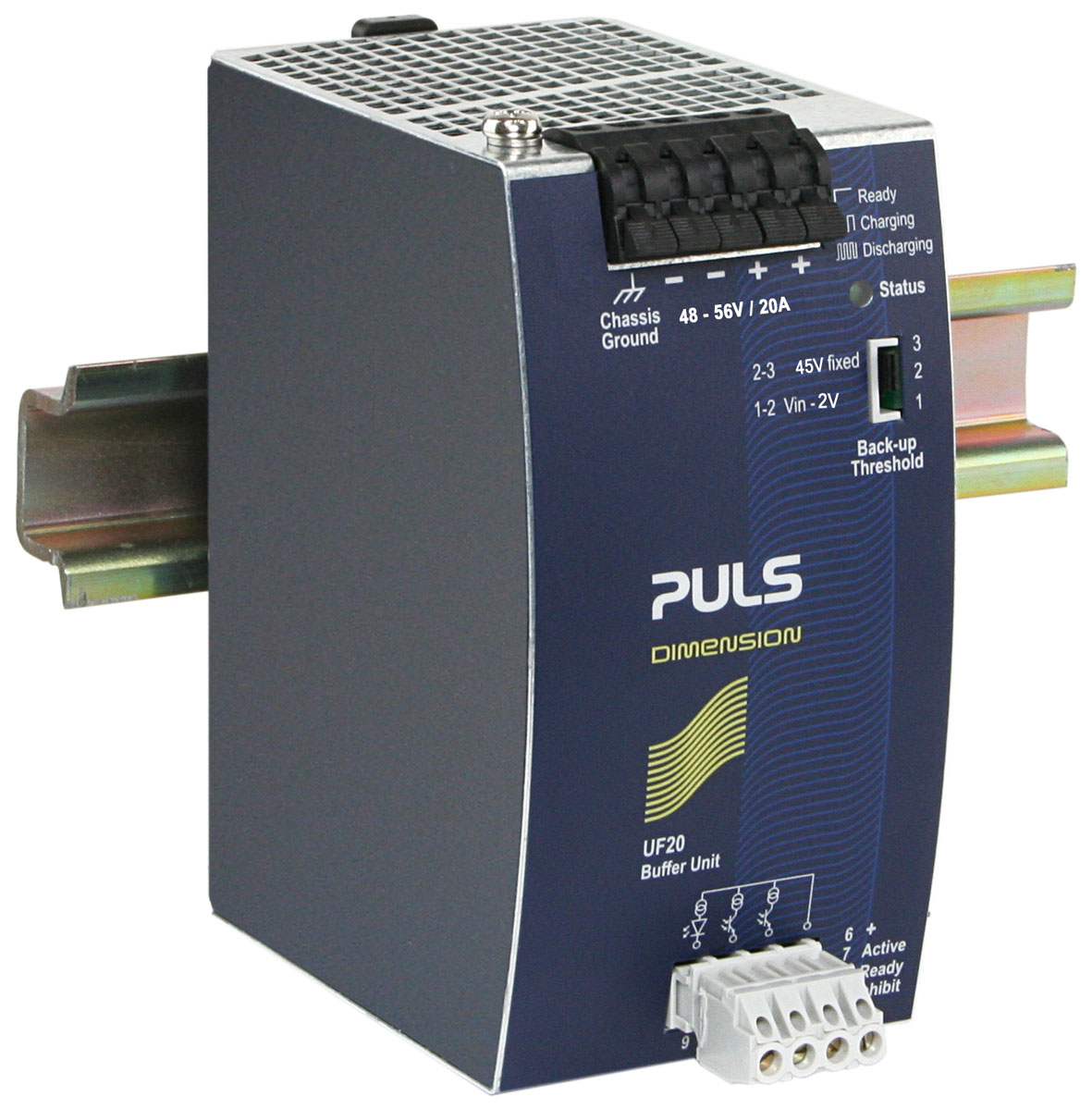

UF20.481

Buffer module
48 V, 20 A
electrolytic capacitor buffer module typ. 100ms at 20A
Datasheet
DC output DC 48 V
20 A
Input DC 48 V (-20 %/+25 %)
Dimensions (WxHxD) 64 x 124 x 102 mm
Weight 740 g
Compare

Input data

DC Input voltage DC 48 V (-20 %/+25 %)

Output data

48 Vds
Output current 20 A

Buffering

Storage element Electrolytic capacitors

Overview

Dimensions (WxHxD) 64 mm x 124 mm x 102 mm
Weight per unit (excl. packaging) 740 g
Mounting method DIN rail
Operating temp. range -25 °C to 70 °C
Connection method Spring clamps
MTBF SN 29500 @ 40 °C (h) 2348000 h
