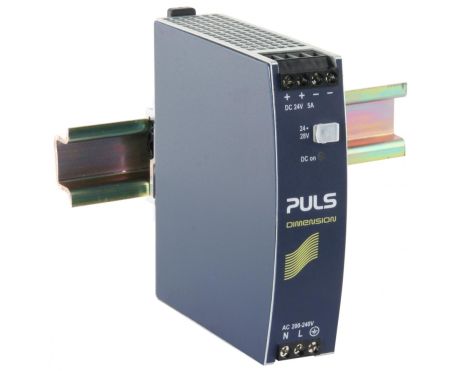

DIN rail power supplies for 1-phase systemDatasheet
24 V, 5 A
24 V, 5 A
|DC output||24 - 28 Vdc|
|5 - 4.3 A|
|Input||AC 200 - 240 V (± 10 %)|
|Dimensions (WxHxD)||32 x 124 x 117 mm|
|AC Input voltage||AC 200 - 240 V (± 10 %)|
|Input inrush current limitation||NTC|
|Input inrush current||30 A|
|External input fuse recommendation||B-16 A / C-10 A|
|Nominal voltage||24 Vdc|
|Adjustment range||24 - 28 V|
|Output current range||5 - 4.3 A|
|Output current||4.3 A at 28 V|
|5 A at 24 V|
|Output power||120 W|
|Power reserves||20 % Power Boost|
|Derating||3 W/°C for >+60 °C|
|Ripple and noise voltage max.||50 mVpp|
|Dimensions (WxHxD)||32 mm x 124 mm x 117 mm|
|Weight per unit (excl. packaging)||500 g|
|Mounting method||DIN rail|
|Connection method||Screw terminals|
|Efficiency, typ.||90.2 %|
|Power losses, typ.||13.2 W|
|MTBF SN 29500 @ 40 °C (h)||940000 h|
