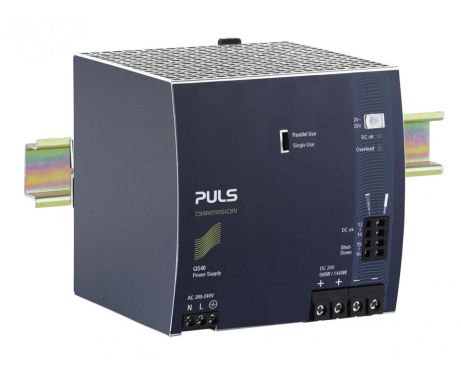

DIN rail power supplies for 1-phase systemDatasheet
|DC output||24 - 28Vdc|
|40 - 34.4A|
|Input||AC 200 - 240V (-15%/+10%)|
|Dimensions (WxHxD)||125 x 124 x 127mm|
|AC Input voltage||AC 200 - 240V (-15%/+10%)|
|Input inrush current limitation||active|
|Input inrush current||14A|
|External input fuse recommendation||B-10A / C-8A|
|Adjustment range||24 - 28V|
|Output current range||40 - 34.4A|
|Output current||34.4A at 28V|
|40A at 24V|
|Power reserves||50% BonusPower|
|Derating||24W/°C for >+60°C|
|Ripple and noise voltage max.||100mVpp|
|Dimensions (WxHxD)||125mm x 124mm x 127mm|
|Weight per unit (excl. packaging)||1800g|
|Mounting method||DIN rail|
|Operating temp. range||-25°C to 70°C|
|Connection method||Screw terminals|
|Power losses, typ.||54.8W|
|MTBF SN 29500 @ 40°C (h)||366000h|
