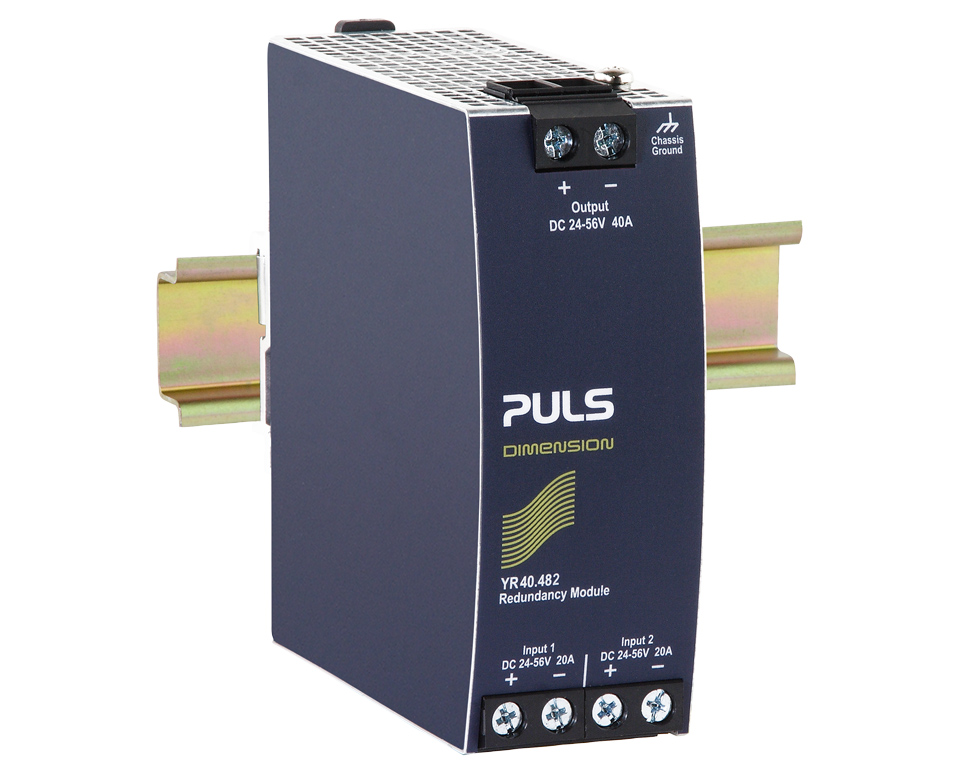

YR40.482
MOSFET redundancy module
24 V, 40 A 2x 20A input, for all DIMENSION power supplies
Datasheet
24 V, 40 A 2x 20A input, for all DIMENSION power supplies
| DC output | 24 - 56 Vdc |
|---|---|
| 40 A | |
| Input | DC 24 V - 56 V |
| Dimensions (WxHxD) | 46 x 124 x 127 mm |
| Weight | 360 g |
Input data
| Input current | 2 x 20 A |
|---|---|
| Nominal current per input | 20 A |
| DC Input voltage | DC 24 V - 56 V |
| Voltage drop | 60 mV |
Output data
| Output current range | 40 A |
|---|---|
| Output current | 40 A |
| Output current short circuit max. | 45 A |
| Derating | 1 W/°C for >+60 °C |
Overview
| Dimensions (WxHxD) | 46 mm x 124 mm x 127 mm |
|---|---|
| Weight per unit (excl. packaging) | 360 g |
| Mounting method | DIN rail |
| Operating temp. range | -40 °C to 70 °C |
| Connection method | Screw terminals |
| Power losses, typ. | 1.8 W |
| No-load losses, typ. | 0.62 W |
| MTBF SN 29500 @ 40 °C (h) | 4100000 h |
