BUS-BAR1-L500

Electrical interconnection rail
32 A single piece | L = 500mm

Dimensions (WxHxD)	500 x 11 x 3 mm
Weight	43 g

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Technical data

Overview

Dimensions (WxHxD)	500 mm x 11 mm x 3 mm
Weight per unit (excl. packaging)	43 g

Techn. documentation

Datasheet

(173 KB)

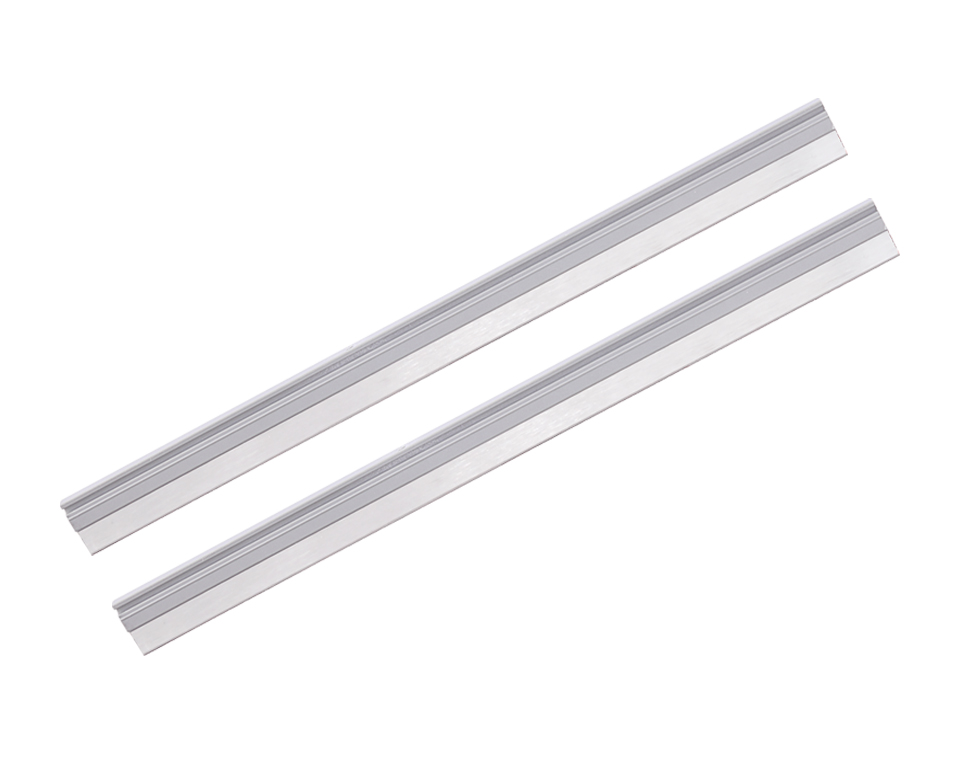

Image BUS-BAR1-L500

(156 KB)

Approvals / Product Compliance

Material Compliance Declaration – RoHS, REACH, ...

(87 KB)

PULS Conflict Minerals Statement & RMI Reporting Templates (CMRT/EMRT)

(3 MB)

Features

ELECTRICAL INTERCONNECTION RAIL

Three different lengths available: 102 mm (BUS-BAR1-L102), 155 mm (BUS-BAR1-L155) and 500 mm (BUS-BAR1-L500)
Easy interconnection of PISA-B modules
Single piece
Length = 500 mm
Suitable for up to 8x PISA-B modules (2 pcs. needed)
Maximum current distributed via busbar must not exceed 32 A
Maximum total current on PISA-B device connected to power supply must not exceed 40 A

Commercial info

Article number	BUS-BAR1-L500
Product status	Lead time on request
UPC code	875404004103
Warranty period (months)	36
Country of origin	Czech Republic
Packaging unit	1 PU pc
Weight per piece (excl. packaging)	43 g
Customs tariff number	85049090
